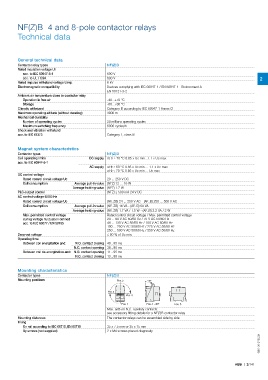

NF(Z)B  4 and 8-pole contactor relays

         Technical data





         General technical data
         Contactor relay types                   NF(Z)B
         Rated insulation voltage Ui
           acc. to IEC 60947-5-1                 690 V
           acc. to UL / CSA                      600 V                                                              2
         Rated impulse withstand voltage Uimp.   6 kV
         Electromagnetic compatibility           Devices complying with IEC 60947-1 / EN 60947-1 - Environment A
                                                 EN 50121-3-2
         Ambient air temperature close to contactor relay
           Operation in free air                 -40...+70 °C
           Storage                               -60...+80 °C
         Climatic withstand                      Category B according to IEC 60947-1 Annex Q
         Maximum operating altitude (without derating)  3000 m
         Mechanical durability
           Number of operating cycles            20 millions operating cycles
           Maximum switching frequency           6000 cycles/h
         Shock and vibration withstand
         acc. to IEC 61373                       Category 1, class B

         Magnet system characteristics
         Contactor types                         NF(Z)B
         Coil operating limits           DC supply At θ ≤ 70 °C 0.85 x Uc min...1.1 x Uc max.
         acc. to IEC 60947-5-1
                                         AC supply at θ ≤ 60 °C 0.85 x Uc min ... 1.1 x Uc max
                                                 at θ ≤ 70 °C 0.85 x Uc min ... Uc max
         DC control voltage
           Rated control circuit voltage Uc      20 ... 250 V DC
           Coil consumption       Average pull-in value (NFZ) 12 ... 16 W
                                 Average holding value (NFZ) 1.7 W
         PLC-output control                      (NFZ) ≥ 500 mA 24 V DC
         AC control voltage 50/60 Hz
           Rated control circuit voltage Uc      (NF..ZB) 24 ... 250 V AC - (AF..B) 250 ... 500 V AC
           Coil consumption       Average pull-in value (NF..ZB) 16 VA - (AF..B) 50 VA
                                 Average holding value (NF..ZB) 1.7 VA / 1.5 W - (AF..B) 2.2 VA / 2 W
           Max. permitted control voltage        Rated control circuit voltage / Max. permitted control voltage
           during voltage fluctuation defined    24 ... 60 V AC 50/60 Hz / 75 V AC 50/60 Hz
           acc. to IEC 60077 / EN 50155          48 ... 130 V AC 50/60 Hz / 150 V AC 50/60 Hz
                                                 100 ... 250 V AC 50/60 Hz / 275 V AC 50/60 Hz
                                                 250 ... 500 V AC 50/60 Hz / 550 V AC 50/60 Hz
         Drop-out voltage                        ≤ 60 % of Uc min.
         Operating time
           Between coil energization and:  N.O. contact closing 40...95 ms
                                  N.C. contact opening 38...90 ms
           Between coil de-energization and: N.O. contact opening 11...95 ms
                                   N.C. contact closing 13...98 ms


         Mounting characteristics
         Contactor types                         NF(Z)B
         Mounting positions                          Pos. 2       -30°

                                                 Pos. 4
                                                         Pos. 3

                                                       Pos. 1     Pos. 1 - 30°  Pos. 5
                                                 Max. add-on N.C. auxiliary contacts:
                                                 see accessory fitting details for a NF(Z)B contactor relay
         Mounting distances                      The contactor relays can be assembled side by side
         Fixing
           On rail according to IEC 60715, EN 60715  35 x 7.5 mm or 35 x 15 mm
           By screws (not supplied)              2 x M4 screws placed diagonally
