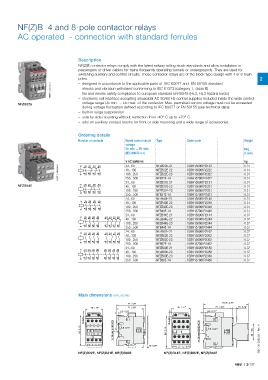

Page 149 - contactors_motor_protection_for_rolling_stock_application

NF(Z)B 4 and 8-pole contactor relays

AC operated - connection with standard ferrules

Description
NF(Z)B contactor relays comply with the latest railway rolling stock standards and allow installation in
passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are used for
switching auxiliary and control circuits. These contactor relays are of the block type design with 4 or 8 main
poles. 2
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SBC101024V0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– fire and smoke safety compliance to european standard EN45545 (HL2, HL3 hazard levels)

voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not be exceeded
NFZB22E – electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control
during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data)
– built-in surge suppression
– side by side mounting without restriction from -40° C up to +70° C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
Number of contacts Rated control circuit Type Order code Weight
voltage
Uc min. ... Uc max. Pkg
(IEC 60947-4-1) (1 pce)
V AC 50/60 Hz NFZB22E-21 1SBH136061R2122 kg
0.31
24...60
1SBC101029V0014 A2 NO 14 NC NC 22 NC 32 NO 44 48...130 NFZB22E-22 1SBH136061R2222 0.31
13
43
31
21
A1
NO
0.31
100...250
1SBH136061R2322
NFZB22E-23
NC
NO
250…500
1SBH136061R2131
NFZB31E-21
24...60 NFB22E-14 1SBH137061R1422 0.31
0.31
NFZB44E A1 NO 13 NC 21 NO 33 NO 43 48...130 NFZB31E-22 1SBH136061R2231 0.31
100...250 NFZB31E-23 1SBH136061R2331 0.31
NO NC NO NO
250…500 NFB31E-14 1SBH137061R1431 0.31
A2 14 22 34 44
24...60 NFZB40E-21 1SBH136061R2140 0.31
A1 13 23 33 43
NO NO NO NO 48...130 NFZB40E-22 1SBH136061R2240 0.31
100...250 NFZB40E-23 1SBH136061R2340 0.31
NO NO NO NO
250…500 NFB40E-14 1SBH137061R1440 0.31
A2 14 24 34 44
24...60 NFZB44E-21 1SBH136061R2144 0.37
A1 13 23 33 43 51 61 71 81
NO NO NO NO NC NC NC NC 48...130 NFZB44E-22 1SBH136061R2244 0.37
100...250 NFZB44E-23 1SBH136061R2344 0.37
NO NO NO NO NC NC NC NC
A2 14 24 34 44 52 62 72 82 250…500 NFB44E-14 1SBH137061R1444 0.37
24...60 NFZB62E-21 1SBH136061R2162 0.37
A1 13 23 33 43 53 61 71 83
NO NO NO NO NO NC NC NO 48...130 NFZB62E-22 1SBH136061R2262 0.37
100...250 NFZB62E-23 1SBH136061R2362 0.37
NO NO NO NO NO NC NC NO
A2 14 24 34 44 54 62 72 84 250…500 NFB62E-14 1SBH137061R1462 0.37
24...60 NFZB80E-21 1SBH136061R2180 0.37
A1 13 23 33 43 53 63 73 83
NO NO NO NO NO NO NO NO 48...130 NFZB80E-22 1SBH136061R2280 0.37
100...250 NFZB80E-23 1SBH136061R2380 0.37
NO NO NO NO NO NO NO NO
A2 14 24 34 44 54 64 74 84 250…500 NFB80E-14 1SBH137061R1480 0.37
Main dimensions mm, inches
77 3.03" 110.5 4.35"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 71 2.80" 10 0.39" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 60 2.36" 70 2.76"
5 0.20" 1SBC100125S0201 - Rev. A 5 0.20"
10 0.39"
5 0.20"
NF(Z)B22E, NF(Z)B31E, NF(Z)B40E NF(Z)B44E, NF(Z)B62E, NF(Z)B80E 5 0.20"
ABB | 2/137
