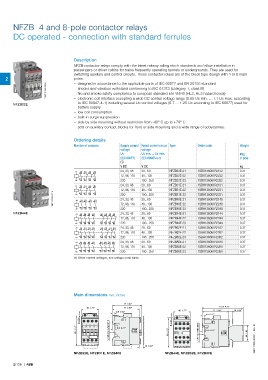

Page 148 - contactors_motor_protection_for_rolling_stock_application

NFZB 4 and 8-pole contactor relays

DC operated - connection with standard ferrules

Description
NFZB contactor relays comply with the latest railway rolling stock standards and allow installation in
passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are used for
switching auxiliary and control circuits. These contactor relays are of the block type design with 4 or 8 main
2 poles.
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SBC101024V0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– fire and smoke safety compliance to european standard EN 45545 (HL2, HL3 hazard levels)
– electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max. according
to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to IEC 60077) used for
NFZB22E
battery supply
– low coil consumption
– built-in surge suppression
– side by side mounting without restriction from -40° C up to +70° C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
Number of contacts Supply control Rated control circuit Type Order code Weight
voltage voltage
Uc Uc min. ... Uc max. Pkg
(IEC 60077) (IEC 60947-4-1) (1 pce)
(1)
V DC V DC kg
24, 33, 48 20...60 NFZB22E-21 1SBH136061R2122 0.31
A1 13 21 31 43
NO NC NC NO
72, 96, 110 48...130 NFZB22E-22 1SBH136061R2222 0.31
NO NC NC NO
A2 14 22 32 44 220 100...250 NFZB22E-23 1SBH136061R2322 0.31
24, 33, 48 20...60 NFZB31E-21 1SBH136061R2131 0.31
A1 13 21 33 43
NO NC NO NO
72, 96, 110 48...130 NFZB31E-22 1SBH136061R2231 0.31
1SBC101029V0014 A2 A1 14 NO 13 NO 22 23 34 NO 33 NO 43 24, 33, 48 20...60 NFZB40E-21 1SBH136061R2140 0.31
220
NO
0.31
NO
1SBH136061R2331
NO
100...250
NC
NFZB31E-23
44
NFZB40E-22
1SBH136061R2240
48...130
0.31
72, 96, 110
A2 NO 14 NO 24 NO 34 NO 44 220 100...250 NFZB40E-23 1SBH136061R2340 0.31
NFZB44E A1 13 23 33 43 51 61 71 81 24, 33, 48 20...60 NFZB44E-21 1SBH136061R2144 0.37
NO NO NO NO NC NC NC NC
72, 96, 110 48...130 NFZB44E-22 1SBH136061R2244 0.37
NO NO NO NO NC NC NC NC 220 100...250 NFZB44E-23 1SBH136061R2344 0.37
A2 14 24 34 44 52 62 72 82
A1 13 23 33 43 53 61 71 83 24, 33, 48 20...60 NFZB62E-21 1SBH136061R2162 0.37
NO NO NO NO NO NC NC NO
72, 96, 110 48...130 NFZB62E-22 1SBH136061R2262 0.37
NO NO NO NO NO NC NC NO
A2 14 24 34 44 54 62 72 84 220 100...250 NFZB62E-23 1SBH136061R2362 0.37
24, 33, 48 20...60 NFZB80E-21 1SBH136061R2180 0.37
A1 13 23 33 43 53 63 73 83
NO NO NO NO NO NO NO NO
72, 96, 110 48...130 NFZB80E-22 1SBH136061R2280 0.37
NO NO NO NO NO NO NO NO
A2 14 24 34 44 54 64 74 84 220 100...250 NFZB80E-23 1SBH136061R2380 0.37
(1) Other control voltages, see voltage code table.
Main dimensions mm, inches
77 3.03"
35 1.38" 110.5 4.35"
45 1.77" 71 2.80" 2 x
ø 4.2 0.17" 71 2.80" 10 0.39" 35 1.38"
45 1.77"
5.5 0.22" M4 8-32 UNC 2 x
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 80 3.15" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 60 2.36" 70 2.76"
5 0.20" 1SBC101804S0201 - Rev. B 5 0.20"
10 0.39"
5 0.20" 5 0.20"
NFZB22E, NFZB31E, NFZB40E NFZB44E, NFZB62E, NFZB80E
