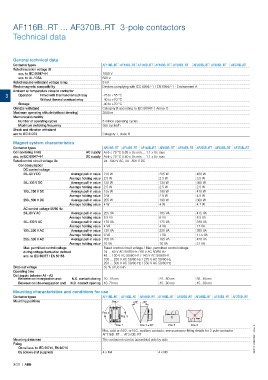

P. 208

AF116B..RT ... AF370B..RT  3-pole contactors

       Technical data





       General technical data
       Contactor types                         AF116B..RT AF140B..RT AF146B..RT AF190B..RT AF205B..RT  AF265B..RT AF305B..RT  AF370B..RT
       Rated insulation voltage Ui
         acc. to IEC 60947-4-1                 1000 V
         acc. to UL / CSA                      600 V
       Rated impulse withstand voltage Uimp.   8 kV
       Electromagnetic compatibility           Devices complying with IEC 60947-1 / EN 60947-1 - Environment A
       Ambient air temperature close to contactor
    3    Operation  Fitted with thermal overload relay  -25 to +55 °C
                   Without thermal overload relay  -40 to +70 °C
         Storage                               -40 to +70 °C
       Climatic withstand                      Category B according to IEC 60947-1 Annex Q
       Maximum operating altitude (without derating)  3000 m
       Mechanical durability
         Number of operating cycles            5 million operating cycles
         Maximum switching frequency           300 cycles/h
       Shock and vibration withstand
       acc to IEC 61373                        Category 1, class B

       Magnet system characteristics
       Contactor types                         AF116B..RT  AF140B..RT  AF146B..RT  AF190B..RT  AF205B..RT AF265B..RT AF305B..RT AF370B..RT
       Coil operating limits           AC supply At θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
       acc. to IEC 60947-4-1           DC supply At θ ≤ 70 °C 0.80 x Uc min ... 1.1 x Uc max
       Rated control circuit voltage Uc        24...500 V AC, 20...500 V DC
         Coil consumption
           DC control voltage
           20...60 V DC          Average pull-in value 210 W            205 W           400 W
                                Average holding value 2.5 W             2.5 W           3.5 W
           48...130 V DC         Average pull-in value 130 W            130 W           360 W
                                Average holding value 2.5 W             2.5 W           2.5 W
           100...250 V DC        Average pull-in value 135 W            190 W           410 W
                                Average holding value 3 W               2.5 W           4.5 W
           250...500 V DC        Average pull-in value 205 W            190 W           600 W
                                Average holding value 4 W               4 W             4.7 W
           AC control voltage 50/60 Hz
           24...60 V AC          Average pull-in value 225 VA           165 VA          475 VA
                                Average holding value 5.5 VA            6 VA            8.5 VA
           48...130 V AC         Average pull-in value 170 VA           175 VA          340 VA
                                Average holding value 4 VA              4 VA            17 VA
           100...250 V AC        Average pull-in value 130 VA           220 VA          385 VA
                                Average holding value 6 VA              7 VA            17.5 VA
           250...500 V AC        Average pull-in value 205 VA           185 VA          420 VA
                                Average holding value 16 VA             16 VA           21 VA
           Max. permitted control voltage      Rated control circuit voltage / Max. permitted control voltage
           during voltage fluctuation defined    24 ... 60 V AC 50/60 Hz / 66 V AC 50/60 Hz
           acc. to IEC 60077 / EN 50155        48 ... 130 V AC 50/60 Hz / 143 V AC 50/60 Hz
                                               100 ... 250 V AC 50/60 Hz / 275 V AC 50/60 Hz
                                               250 ... 500 V AC 50/60 Hz / 550 V AC 50/60 Hz
       Drop-out voltage                        55 % of Uc min
       Operating time
       Coil supply between A1 - A2
         Between coil energization and:  N.O. contact closing 20...55 ms  25...60 ms    30...60 ms
         Between coil de-energization and:  N.O. contact opening 40..70 ms  45...80 ms  45...80 ms
       Mounting characteristics and conditions for use
       Contactor types                         AF116B..RT  AF140B..RT  AF146B..RT  AF190B..RT  AF205B..RT AF265B..RT AF305B..RT AF370B..RT
       Mounting positions                          Pos. 2   +30°  -30°

                                               Pos. 4
                                                       Pos. 3

                                                     Pos. 1    Pos. 1 ± 30°  Pos. 5   Pos. 6
                                               Max. add-on N.O. or N.C. auxiliary contacts: see accessory fitting details for 3-pole contactor
                                               AF116B..RT ... AF370B..RT
       Mounting distances                      The contactors can be assembled side by side                       1SFC101239C0201 - Rev. A
       Fixing
         On rail acc. to IEC 60715, EN 60715   -
         By screws (not supplied)              4 x M4                  4 x M5

       3/28  |  ABB
