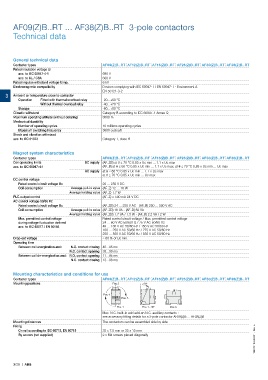

AF09(Z)B..RT ... AF38(Z)B..RT  3-pole contactors

       Technical data





       General technical data
       Contactor types                         AF09(Z)B..RT AF12(Z)B..RT AF16(Z)B..RT AF26(Z)B..RT AF30(Z)B..RT AF38(Z)B..RT
       Rated insulation voltage Ui
         acc. to IEC 60947-4-1                 690 V
         acc. to UL / CSA                      600 V
       Rated impulse withstand voltage Uimp.   6 kV
       Electromagnetic compatibility           Devices complying with IEC 60947-1 / EN 60947-1 - Environment A
                                               EN 50121-3-2
    3  Ambient air temperature close to contactor
         Operation  Fitted with thermal overload relay  -20...+60 °C
                   Without thermal overload relay  -40...+70 °C
         Storage                               -60...+80 °C
       Climatic withstand                      Category B according to IEC 60947-1 Annex Q
       Maximum operating altitude (without derating)  3000 m
       Mechanical durability
         Number of operating cycles            10 millions operating cycles
         Maximum switching frequency           3600 cycles/h
       Shock and vibration withstand
       acc. to IEC 61373                       Category 1, class B


       Magnet system characteristics
       Contactor types                         AF09(Z)B..RT AF12(Z)B..RT AF16(Z)B..RT AF26(Z)B..RT AF30(Z)B..RT AF38(Z)B..RT
       Coil operating limits           DC supply (AF..ZB) at θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
       acc. to IEC 60947-4-1                   (AF..B) at θ ≤ 60 °C 0.85 x Uc min ... 1.1 x Uc max; at θ ≤ 70 °C 0.85 x Uc min ... Uc max
                                       AC supply at θ ≤ 60 °C 0.85 x Uc min ... 1.1 x Uc max
                                               at θ ≤ 70 °C 0.85 x Uc min ... Uc max
       DC control voltage
         Rated control circuit voltage Uc      20 ... 250 V DC
         Coil consumption        Average pull-in value (AF..Z) 12 ... 16 W
                                Average holding value (AF..Z) 1.7 W
       PLC-output control                      (AF..Z) ≥ 500 mA 24 V DC
       AC control voltage 50/60 Hz
         Rated control circuit voltage Uc      (AF..ZB) 24 ... 250 V AC - (AF..B) 250 ... 500 V AC
         Coil consumption        Average pull-in value (AF..ZB) 16 VA - (AF..B) 50 VA
                                Average holding value (AF..ZB) 1.7 VA / 1.5 W - (AF..B) 2.2 VA / 2 W
         Max. permitted control voltage        Rated control circuit voltage / Max. permitted control voltage
         during voltage fluctuation defined    24 ... 60 V AC 50/60 Hz / 75 V AC 50/60 Hz
         acc. to IEC 60077 / EN 50155          48 ... 130 V AC 50/60 Hz / 150 V AC 50/60 Hz
                                               100 ... 250 V AC 50/60 Hz / 275 V AC 50/60 Hz
                                               250 ... 500 V AC 50/60 Hz / 550 V AC 50/60 Hz
       Drop-out voltage                        ≤ 60 % of Uc min.
       Operating time
         Between coil energization and:  N.O. contact closing 40...95 ms
                                N.C. contact opening 38...90 ms
         Between coil de-energization and: N.O. contact opening 11...95 ms
                                 N.C. contact closing 13...98 ms


       Mounting characteristics and conditions for use
       Contactor types                         AF09(Z)B..RT AF12(Z)B..RT AF16(Z)B..RT AF26(Z)B..RT AF30(Z)B..RT AF38(Z)B..RT
       Mounting positions                          Pos. 2       -30°

                                               Pos. 4
                                                       Pos. 3
                                                     Pos. 1     Pos. 1 - 30°  Pos. 5
                                               Max. N.C. built-in add add-on N.C. auxiliary contacts :
                                               see accessory fitting details for a 3-pole contactor AF09(Z)B ... AF38(Z)B
       Mounting distances                      The contactors can be assembled side by side
       Fixing
                                                                                                                  1SBC101849S0201 - Rev. A
         On rail according to IEC 60715, EN 60715  35 x 7.5 mm or 35 x 15 mm
         By screws (not supplied)              2 x M4 screws placed diagonally





       3/26  |  ABB
