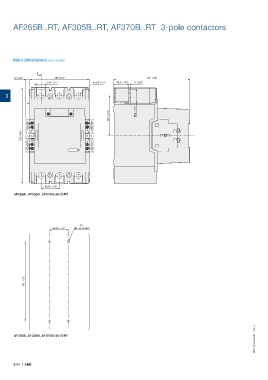

AF265B..RT, AF305B..RT, AF370B..RT 3-pole contactors
Main dimensions mm, inches
A
10 0.39" 140 5.51" 180 7.09"
19.5 0.77" ΓΈ 10.5 0.41" 35.5 1.40" 5 0.20"
3
94.7 3.73" 33.4 1.31"
225 8.86"
43.75 1.72"
AF265B, AF305B, AF370B-30-22RT
4 X
43.75 1.72" M5 10-24 UNC
187 7.36"
1SFC101244C0201 - Rev. A
AF265B, AF305B, AF370B-30-22RT
3/44 | ABB
