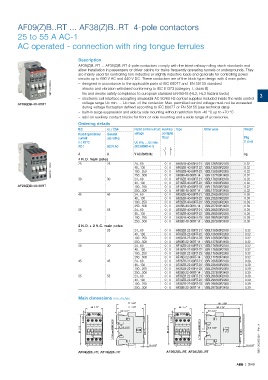

AF09(Z)B..RT ... AF38(Z)B..RT 4-pole contactors

25 to 55 A AC-1
AC operated - connection with ring tongue ferrules

Description
AF09(Z)B..RT ... AF38(Z)B..RT 4-pole contactors comply with the latest railway rolling stock standards and
allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They
are mainly used for controlling non-inductive or slightly inductive loads and generally for controlling power
circuits up to 690 V AC and 440 V DC. These contactors are of the block type design with 4 main poles.
1SBC101405F0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
– fire and smoke safety compliance to european standard EN45545 (HL2, HL3 hazard levels)
– electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control 3
AF09(Z)B-40-00RT voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data)
– built-in surge suppression and side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General voltage contacts
current use rating fitted Pkg
θ ≤ 40 °C Uc min. … Uc max. (1 pce)
AC-1 600 V AC (IEC 60947-4-1)
A A V AC 50/60 Hz kg
4 N.O. main poles 25 24...60 0 0 AF09ZB-40-00RT-21 1SBL136260R2100 0.32
25
1SBC101411F0014 48...130 0 0 AF09ZB-40-00RT-22 1SBL136260R2200 0.32
0 0
AF09ZB-40-00RT-23 1SBL136260R2300
0.32
100...250
0 0
250…500
1SBL137260R1400
AF09B-40-00RT-14
0.32
30 30 24...60 0 0 AF16ZB-40-00RT-21 1SBL176260R2100 0.32
48...130 0 0 AF16ZB-40-00RT-22 1SBL176260R2200 0.32
AF26(Z)B-40-00RT 100...250 0 0 AF16ZB-40-00RT-23 1SBL176260R2300 0.32
250…500 0 0 AF16B-40-00RT-14 1SBL177260R1400 0.32
45 45 24...60 0 0 AF26ZB-40-00RT-21 1SBL236260R2100 0.39
48...130 0 0 AF26ZB-40-00RT-22 1SBL236260R2200 0.39
100...250 0 0 AF26ZB-40-00RT-23 1SBL236260R2300 0.39
250…500 0 0 AF26B-40-00RT-14 1SBL237260R1400 0.39
55 55 24...60 0 0 AF38ZB-40-00RT-21 1SBL296260R2100 0.39
48...130 0 0 AF38ZB-40-00RT-22 1SBL296260R2200 0.39
100...250 0 0 AF38ZB-40-00RT-23 1SBL296260R2300 0.39
250…500 0 0 AF38B-40-00RT-14 1SBL297260R1400 0.39
2 N.O. + 2 N.C. main poles
25 25 24...60 0 0 AF09ZB-22-00RT-21 1SBL136560R2100 0.32
48...130 0 0 AF09ZB-22-00RT-22 1SBL136560R2200 0.32
100...250 0 0 AF09ZB-22-00RT-23 1SBL136560R2300 0.32
250…500 0 0 AF09B-22-00RT-14 1SBL137560R1400 0.32
30 30 24...60 0 0 AF16ZB-22-00RT-21 1SBL176560R2100 0.32
48...130 0 0 AF16ZB-22-00RT-22 1SBL176560R2200 0.32
100...250 0 0 AF16ZB-22-00RT-23 1SBL176560R2300 0.32
250…500 0 0 AF16B-22-00RT-14 1SBL177560R1400 0.32
45 45 24...60 0 0 AF26ZB-22-00RT-21 1SBL236560R2100 0.39
48...130 0 0 AF26ZB-22-00RT-22 1SBL236560R2200 0.39
100...250 0 0 AF26ZB-22-00RT-23 1SBL236560R2300 0.39
250…500 0 0 AF26B-22-00RT-14 1SBL237560R1400 0,39
55 55 24...60 0 0 AF38ZB-22-00RT-21 1SBL296560R2100 0.39
48...130 0 0 AF38ZB-22-00RT-22 1SBL296560R2200 0.39
100...250 0 0 AF38ZB-22-00RT-23 1SBL296560R2300 0.39
250…500 0 0 AF38B-22-00RT-14 1SBL297560R1400 0.39
Main dimensions mm, inches
77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38"
ø 4.2 0.17" 2 x
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 1SBC100099S0201 - Rev. A 5 0.20"
10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09(Z)B..RT, AF16(Z)B..RT AF26(Z)B..RT, AF38(Z)B..RT

ABB | 3/49
