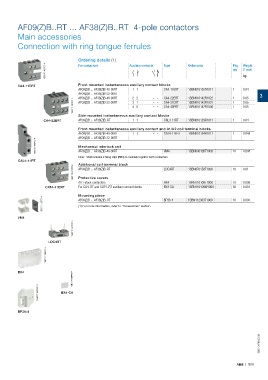

AF09(Z)B..RT ... AF38(Z)B..RT 4-pole contactors

Main accessories
Connection with ring tongue ferrules

Ordering details (1)
1SBC101423F0014 For contactors Auxiliary contacts Type Order code Pkg Weight
qty
(1 pce)
kg
CA4-11ERT Front-mounted instantaneous auxiliary contact blocks
AF09(Z)B ... AF38(Z)B-40-00RT 1 1 – – CA4-11ERT 1SBN010155R1011 1 0.04
AF09(Z)B ... AF38(Z)B-22-00RT 3
AF09(Z)B ... AF38(Z)B-40-00RT 2 2 – – CA4-22ERT 1SBN010142R1022 1 0.05
1SBC101421F0014 AF09(Z)B ... AF38(Z)B-22-00RT 3 1 – – CA4-31ERT 1SBN010142R1031 1 1 0.05
– –
4 0
0.05
1SBN010142R1040
CA4-40ERT
Side-mounted instantaneous auxiliary contact blocks
CA4-22ERT AF09(Z)B ... AF38(Z)B..RT 1 1 – – CAL4-11RT 1SBN010129R1011 1 0.04
Front-mounted instantaneous auxiliary contact and A1/A2 coil terminal blocks
AF09(Z)B ... AF38(Z)B-40-00RT 1 1 – – CAT4-11ERT 1SBN010154R1011 1 0.045
AF09(Z)B ... AF38(Z)B-22-00RT
1SBC101426F0014 Mechanical interlock unit VM4 1SBN030105T1000 10 0.005
AF09(Z)B ... AF38(Z)B-40-00RT
Note: VM4 includes 2 fixing clips (BB4) to maintain together both contactors.
CAL4-11RT
Additional coil terminal block
1SBC101431F0014 AF09(Z)B ... AF38(Z)B..RT LDC4RT 1SBN070158T1000 10 0.01

Protective covers
All 1-stack contactors BX4 1SBN110108T1000 10 0.006
CAT4-11ERT For CA4..RT and CAT4..RT auxiliary contact blocks BX4-CA 1SBN110109W1000 50 0.001

Mounting piece BP38-4 1SBN112303T1000 10 0.003
1SBC101128F0014 (1) For more information, refer to "Accessories" section.
AF09(Z)B ... AF38(Z)B..RT

VM4
1SBC101427F0014

LDC4RT
1SBC101136F0014

BX4
1SBC101138F0014

1SBC101383F0014 BX4-CA

BP38-4

1SBC101769S0201

ABB | 3/51
