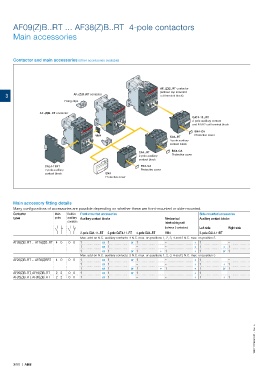

AF09(Z)B..RT ... AF38(Z)B..RT 4-pole contactors

Main accessories

Contactor and main accessories (other accessories available)

AF..(Z)B..RT contactor
(without top mounted
3 AF..(Z)B..RT contactor coil terminal block)
Fixing clips

AF..(Z)B..RT contactor
CAT4-11..RT
2-pole auxiliary contact
and A1/A2 coil terminal block
BX4-CA
VM4 CA4..RT Protective cover
4-pole auxiliary
contact block
BX4-CA
CA4..RT
2-pole auxiliary Protective cover
contact block
CAL4-11RT BX4-CA
2-pole auxiliary Protective cover
contact block BX4
Protective cover

Main accessory fitting details
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Mechanical Auxiliary contact blocks
contacts interlocking unit
(between 2 contactors) Left side Right side
2-pole CA4-11..RT 2-pole CAT4-11..RT 4-pole CA4..RT VM4 2-pole CAL4-11RT
Max. add-on N.C. auxiliary contacts: 4 N.C. max. on positions 1, 2, 3, 4 and 3 N.C. max. on position 5
AF09(Z)B..RT ... AF16(Z)B..RT 4 0 0 0 1 or 1 or 1 – + 1 –
1 or 1 – – + 1 + 1
1 or 1 or 1 + 1 + 1 or 1
Max. add-on N.C. auxiliary contacts: 3 N.C. max. on positions 1, 2, 3, 4 and 2 N.C. max. on position 5
AF26(Z)B..RT ... AF38(Z)BRT 4 0 0 0 1 or 1 or 1 – + 1 –
1 or 1 – – + 1 + 1
1 or 1 or 1 + 1 + 1 or 1
AF09(Z)B..RT, AF16(Z)B..RT 2 2 0 0 1 or 1 or 1 – + 1 –
AF26(Z)B..RT, AF38(Z)B..RT 2 2 0 0 1 or 1 – – + 1 + 1

1SBC101768S0201 - Rev. A
