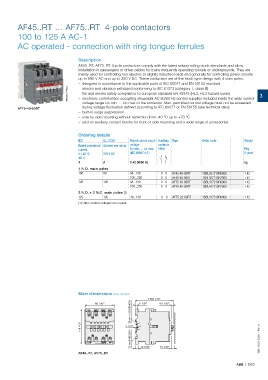

AF45..RT … AF75..RT 4-pole contactors

100 to 125 A AC-1
AC operated - connection with ring tongue ferrules

Description
AF45..RT, AF75..RT 4-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are
mainly used for controlling non-iductive or slightly inductive loads and generally for controlling power circuits
up to 690 V AC and up to 220 V DC. These contactors are of the block type design with 4 main poles.
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SBC590077F0304 – fire and smoke safety compliance to european standard EN 45545 (HL2, HL3 hazard levels) 3
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– electronic coil interface accepting sinusoïdal AC 50/60 Hz control supplies included inside the wide control
voltage range Uc min. ... Uc max of the contactor. Max. permitted control voltage must not be exceeded
AF75-40-00RT during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data)
– built-in surge suppression
– side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use rating voltage contacts
current Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (IEC 60947-4-1) (1 pce)
AC-1
A A V AC 50/60 Hz kg
4 N.O. main poles
100 80 48...130 0 0 AF45-40-00RT 1SBL337210R6900 1.42
100...250 0 0 AF45-40-00RT 1SBL337210R7000 1.42
125 105 48...130 0 0 AF75-40-00RT 1SBL417210R6900 1.42
100...250 0 0 AF75-40-00RT 1SBL417210R7000 1.42
2 N.O. + 2 N.C. main poles (1)
125 105 48...130 0 0 AF75-22-00RT 1SBL417510R6900 1.42
(1) Other control voltages on request.

Main dimensions mm, inches
119.5 4.70"
35 mm x15 EN/IEC 60715
92 3.62" 6 0.24" 6.5 0.26"

110 4.33" 4 0.16"
75 mm EN/IEC 60715 1SBC100081S0201 - Rev. A 1SBC100081S0201

AF45..RT, AF75..RT 10 0.39" 10 0.39"

ABB | 3/53
