AF09(Z)B..RT, AF16(Z)B..RT 4-pole contactors

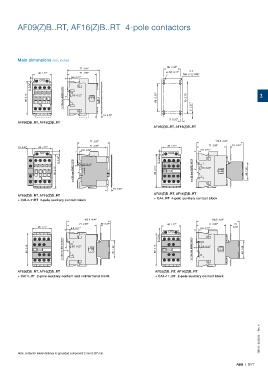

Main dimensions mm, inches
77 3.03"
45 1.77" 77 3.03" 71 2.80" 35 1.38" 35 1.38" 2 x
45 1.77" 71 2.80" 5.5 0.22" 2 x ø 4.2 0.17" M4 8-32 UNC
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"

80 3.15" 80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76" 5 0.20" 60 2.36" 70 2.76" 3

10 0.39" 10 0.39" 5 0.20"
5 0.20"
5 0.20"
AF09(Z)B..RT, AF16(Z)B..RT
AF09(Z)B..RT, AF16(Z)B..RT

77 3.03" 110.5 4.35"
71 2.80" 45 1.77" 71 2.80" 10 0.39"
12 0.47" 45 1.77"
5.5 0.22" 5.5 0.22"
6 0.24" 5.5 0.22" 6 0.24"

80 3.15" 35 mm EN/IEC 60715 80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69"

10 0.39"
AF09(Z)B..RT, AF16(Z)B..RT
AF09(Z)B..RT, AF16(Z)B..RT
+ CAL4-11RT 2-pole auxiliary contact block + CA4..RT 4-pole auxiliary contact block

102.5 4.04" 102.5 4.04"
71 2.80" 10 0.39" 45 1.77" 71 2.80" 10
45 1.77" 5.5 0.22" 5.5 0.22" 0.39"

35 mm EN/IEC 60715 5.5 0.22" 6 0.24" 35 mm EN/IEC 60715 5.5 0.22"
80 3.15" 43 1.69" 80 3.15" 43 1.69"

AF09(Z)B..RT, AF16(Z)B..RT AF09(Z)B..RT, AF16(Z)B..RT
+ CAT4..RT 2-pole auxiliary contact and coil terminal block + CA4-11..RT 2-pole auxiliary contact block

1SBC101824S0201 - Rev. A

Note: contactor lateral distance to grounded component 2 mm 0.08" min.
