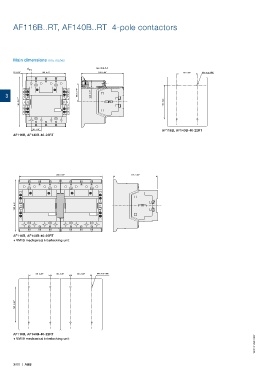

AF116B..RT, AF140B..RT 4-pole contactors
Main dimensions mm, inches
A SECTION A-A
10 0.39" 120 4.72" 128 5.04" 60 2.36" M4 8-32 UNC
3 55.5 2.18" 19.5 0.77"
150 5.91" 100 3.94"
30 1.18" AF116B, AF140B-40-22RT
AF116B, AF140B-40-22RT
240 9.45" 128 5.04"
150 5.91"
AF116B, AF140B-40-22RT
+ VM19 mechanical interlocking unit
60 2.36" 60 2.36" 60 2.36" M4 8-32 UNC
100 3.94"
AF116B, AF140B-40-22RT
1SFC101250C0201
+ VM19 mechanical interlocking unit
