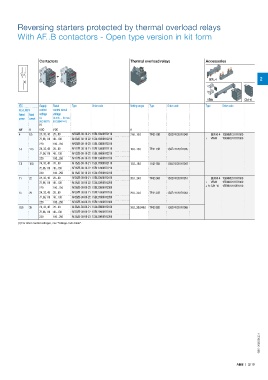

Reversing starters protected by thermal overload relays

With AF..B contactors - Open type version in kit form

Contactors Thermal overload relays Accessories

+
BER..-4 2

VEM4 CA4-10
IEC Supply Rated Type Order code Setting ranges Type Order code Type Order code
AC-3, 400 V control control circuit
Rated Rated voltage voltage
power current Uc Uc min. … Uc max.
(IEC 60077) (IEC 60947-4-1)
(1)
kW A V DC V DC A
4 8.5 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 7.60...10.0 TF42-10B 1SAZ741201R1043 BER16-4 1SBN081311R1000
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210 + VEM4 1SBN030111R1000
220 100...250 AF09ZB-30-10-23 1SBL136061R2310
5.5 11.5 24, 33, 48 20...60 AF12ZB-30-10-21 1SBL156061R2110 10.0...13.0 TF42-13B 1SAZ741201R1045
72, 96, 110 48...130 AF12ZB-30-10-22 1SBL156061R2210
220 100...250 AF12ZB-30-10-23 1SBL156061R2310
7.5 15.5 24, 33, 48 20...60 AF16ZB-30-10-21 1SBL176061R2110 13.0...16.0 TF42-16B 1SAZ741201R1047
72, 96, 110 48...130 AF16ZB-30-10-22 1SBL176061R2210
220 100...250 AF16ZB-30-10-23 1SBL176061R2310
11 22 24, 33, 48 20...60 AF26ZB-30-00-21 1SBL236061R2100 20.0...24.0 TF42-24B 1SAZ741201R1051 BER38-4 1SBN082311R1000
72, 96, 110 48...130 AF26ZB-30-00-22 1SBL236061R2200 + VEM4 1SBN030111R1000
220 100...250 AF26ZB-30-00-23 1SBL236061R2300 + 2x CA4-10 1SBN010110R1010
15 29 24, 33, 48 20...60 AF30ZB-30-00-21 1SBL276061R2100 29.0...35.0 TF42-35B 1SAZ741201R1053
72, 96, 110 48...130 AF30ZB-30-00-22 1SBL276061R2200
220 100...250 AF30ZB-30-00-23 1SBL276061R2300
18.5 35 24, 33, 48 20...60 AF38ZB-30-00-21 1SBL296061R2100 35.0...38.0/40.0 TF42-38B 1SAZ741201R1055
72, 96, 110 48...130 AF38ZB-30-00-22 1SBL296061R2200
220 100...250 AF38ZB-30-00-23 1SBL296061R2300
(1) For other control voltages, see "Voltage code table".
