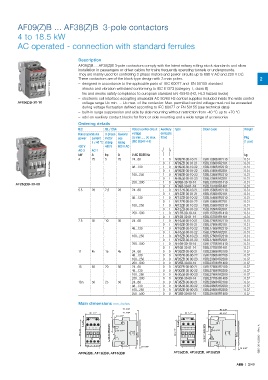

AF09(Z)B ... AF38(Z)B 3-pole contactors

4 to 18.5 kW
AC operated - connection with standard ferrules

Description
AF09(Z)B ... AF38(Z)B 3-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC.
These contactors are of the block type design with 3 main poles. 2
1SBC101011V0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
– fire and smoke safety compliance to european standard EN 45545 (H2, HL3 hazard levels)
– electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control
AF09(Z)B-30-10 voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data)
– built-in surge suppression and side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (IEC 60947-4-1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V AC 50/60 Hz kg
4 25 5 25 24...60 1 0 0 1 AF09ZB-30-10-21 1SBL136061R2110 0.31
1SBC101011V0014 48...130 1 0 0 1 AF09ZB-30-10-22 1SBL136061R2210 0.31
0.31
1SBL136061R2101
AF09ZB-30-01-21
1SBL136061R2201
AF09ZB-30-01-22
0.31
100...250
0.31
0 1 0 1 AF09ZB-30-10-23 1SBL136061R2310 0.31
1SBL136061R2301
AF09ZB-30-01-23
250…500 1 0 AF09B-30-10-14 1SBL137061R1410 0.31
AF26(Z)B-30-00
0 1 AF09B-30-01-14 1SBL137061R1401 0.31
5.5 28 7,5 28 24...60 1 0 AF12ZB-30-10-21 1SBL156061R2110 0.31
0 1 AF12ZB-30-01-21 1SBL156061R2101 0.31
48...130 1 0 AF12ZB-30-10-22 1SBL156061R2210 0.31
0 1 AF12ZB-30-01-22 1SBL156061R2201 0.31
100...250 1 0 AF12ZB-30-10-23 1SBL156061R2310 0.31
0 1 AF12ZB-30-01-23 1SBL156061R2301 0.31
250…500 1 0 AF12B-30-10-14 1SBL157061R1410 0.31
0 1 AF12B-30-01-14 1SBL157061R1401 0.31
7.5 30 10 30 24...60 1 0 AF16ZB-30-10-21 1SBL176061R2110 0.31
0 1 AF16ZB-30-01-21 1SBL176061R2101 0.31
48...130 1 0 AF16ZB-30-10-22 1SBL176061R2210 0.31
0 1 AF16ZB-30-01-22 1SBL176061R2201 0.31
100...250 1 0 AF16ZB-30-10-23 1SBL176061R2310 0.31
0 1 AF16ZB-30-01-23 1SBL176061R2301 0.31
250…500 1 0 AF16B-30-10-14 1SBL177061R1410 0.31
0 1 AF16B-30-01-14 1SBL177061R1401 0.31
11 45 15 45 24...60 0 0 AF26ZB-30-00-21 1SBL236061R2100 0.37
48...130 0 0 AF26ZB-30-00-22 1SBL236061R2200 0.37
100...250 0 0 AF26ZB-30-00-23 1SBL236061R2300 0.37
250…500 0 0 AF26B-30-00-14 1SBL237061R1400 0.37
15 50 20 50 24...60 0 0 AF30ZB-30-00-21 1SBL276061R2100 0.37
48...130 0 0 AF30ZB-30-00-22 1SBL276061R2200 0.37
100...250 0 0 AF30ZB-30-00-23 1SBL276061R2300 0.37
250…500 0 0 AF30B-30-00-14 1SBL277061R1400 0.37
18.5 50 25 50 24...60 0 0 AF38ZB-30-00-21 1SBL296061R2100 0.37
48...130 0 0 AF38ZB-30-00-22 1SBL296061R2200 0.37
100...250 0 0 AF38ZB-30-00-23 1SBL296061R2300 0.37
250…500 0 0 AF38B-30-00-14 1SBL297061R1400 0.37
Main dimensions mm, inches
77 3.03" 86 3.39"
35 1.38"
45 1.77" 71 2.80" 2 x 45 1.77" 80 3.15" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 80 3.15" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 1SBC100114S0201 - Rev. A 5 0.20"
10 0.39"
5 0.20" 10 0.39" 5 0.20"
AF09(Z)B, AF12(Z)B, AF16(Z)B AF26(Z)B, AF30(Z)B, AF38(Z)B
