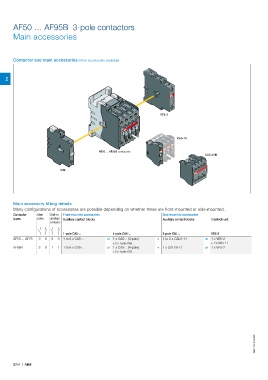

AF50 … AF95B 3-pole contactors

Main accessories

Contactor and main accessories (other accessories available)

2

VE5-2

CA5-10

AF50 ... AF95B contactors
CA5-22M

CAL

Main accessory fitting details
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks Interlock unit
contacts

1-pole CA5-.. 4-pole CA5-.. 2-pole CAL-.. VE5-2
AF50 ... AF75 3 0 0 0 1 to 6 x CA5-.. or 1 x CA5-.. (4-pole) + 1 to 2 x CAL5-11 or 1 x VE5-2
+ 2 x 1-pole CA5-.. + 1 x CAL5-11
AF95B 3 0 1 1 1 to 6 x CA5-.. or 1 x CA5-.. (4-pole) + 1 x CAL18-11 or 1 x VE5-2
+ 2 x 1-pole CA5-..

1SBC100130S0201
