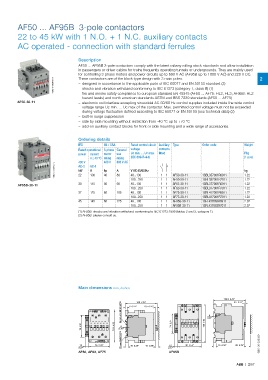

AF50 ... AF95B 3-pole contactors

22 to 45 kW with 1 N.O. + 1 N.C. auxiliary contacts
AC operated - connection with standard ferrules

Description
AF50 ... AF95B 3-pole contactors comply with the latest railway rolling stock standards and allow installation
in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are mainly used
for controlling 3-phase motors and power circuits up to 690 V AC (AF95B up to 1000 V AC) and 220 V DC. 2
These contactors are of the block type design with 3 main poles.
1SBC101363F0010 – designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard (2)
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B) (1)
– fire and smoke safety compliance to european standard EN 45545 (AF50 ... AF75: HL2, HL3; AF95B: HL2
hazard levels) and north american standards ASTM and BSS 7239 standards (AF50 ... AF75)
AF50-30-11 – electronic coil interface accepting sinusoïdal AC 50/60 Hz control supplies included inside the wide control
voltage range Uc min. ... Uc max of the contactor. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data) (2)
– built-in surge suppression
– side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (IEC 60947-4-1) (1 pce)
400 V 480 V 600 V AC
1SBC101512F0014 AC-3 AC-1 hp A 80 V AC 50/60 Hz 1 1 AF50-30-11 1SBL357001R6911 kg
A
kW
48...130
40
100
1.22
22
100...250 1 1 AF50-30-11 1SBL357001R7011 1.22
AF95B-30-11 30 115 60 90 48...130 1 1 AF63-30-11 1SBL377001R6911 1.22
100...250 1 1 AF63-30-11 1SBL377001R7011 1.22
37 125 60 105 48...130 1 1 AF75-30-11 1SBL417001R6911 1.22
100...250 1 1 AF75-30-11 1SBL417001R7011 1.22
45 145 60 125 48...130 1 1 AF95B-30-11 1SFL437063R6911 2.07
100...250 1 1 AF95B-30-11 1SFL437063R7011 2.07
(1) AF95B: shocks and vibration withstand conforming to IEC 61373:1999 (tables 2 and 3, category 1).
(2) AF95B: please consult us.

Main dimensions mm, inches

123.5 4.86" 6.5 0.26"
108 4.25"
35 mm x15 EN/IEC 60715 6 0.24" 6.5 0.26" 0.24"

6
74 2.91" 110 4.33" 0.16" 74 2.91" 148 5.83"
4
75 mm EN/IEC 60715

12 70 2.76" 10 0.39" 10 0.39" 12 90 3.54" 10 0.39" 20 0.79" 1SBC100133S0201 1SBC100133S0201
0.47" 0.47"
AF50, AF63, AF75 AF95B
