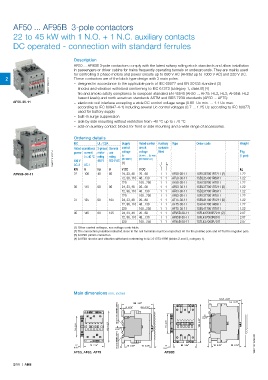

AF50 ... AF95B 3-pole contactors

22 to 45 kW with 1 N.O. + 1 N.C. auxiliary contacts
DC operated - connection with standard ferrules

Description
AF50 ... AF95B 3-pole contactors comply with the latest railway rolling stock standards and allow installation
in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are mainly used
for controlling 3-phase motors and power circuits up to 690 V AC (AF95B up to 1000 V AC) and 220 V DC.
2 These contactors are of the block type design with 3 main poles.
1SBC101363F0010 – designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard (3)
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B) (4)
– fire and smoke safety compliance to european standard EN 45545 (AF50 ... AF75: HL2, HL3; AF95B: HL2
hazard levels) and north american standards ASTM and BSS 7239 standards (AF50 ... AF75)
AF50-30-11 – electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max.
according to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to IEC 60077)
used for battery supply
– built-in surge suppression
– side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
IEC UL / CSA Supply Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General control circuit contacts Pkg
voltage
fitted
voltage
use
motor
power current
1SBC101512F0014 400 V θ ≤ 40 °C rating rating Uc Uc min. … Uc max. (1 pce)
(IEC 60947-4-1)
(IEC 60077)
600 V AC
480 V
(1)
AC-3
A
kW AC-1 hp A V DC V DC kg
AF95B-30-11 22 100 40 80 24, 33, 48 20...60 1 1 AF50-30-11 1SBL357001R7211 (2) 1.22
72, 96, 110 48...130 1 1 AF50-30-11 1SBL357001R6911 1.22
220 100...250 1 1 AF50-30-11 1SBL357001R7011 1.22
30 115 60 90 24, 33, 48 20...60 1 1 AF63-30-11 1SBL377001R7211 (2) 1.22
72, 96, 110 48...130 1 1 AF63-30-11 1SBL377001R6911 1.22
220 100...250 1 1 AF63-30-11 1SBL377001R7011 1.22
37 125 60 105 24, 33, 48 20...60 1 1 AF75-30-11 1SBL417001R7211 (2) 1.22
72, 96, 110 48...130 1 1 AF75-30-11 1SBL417001R6911 1.22
220 100...250 1 1 AF75-30-11 1SBL417001R7011 1.22
45 145 60 125 24, 33, 48 20...60 1 1 AF95B-30-11 1SFL437063R7211 (2) 2.07
72, 96, 110 48...130 1 1 AF95B-30-11 1SFL437063R6911 2.07
220 100...250 1 1 AF95B-30-11 1SFL437063R7011 2.07
(1) Other control voltages, see voltage code table.
(2) The connection polarities indicated close to the coil terminals must be respected: A1 for the positive pole and A2 for the negative pole.
(3) AF95B: please consult us.
(4) AF95B: shocks and vibration withstand conforming to IEC 61373:1999 (tables 2 and 3, category 1).

Main dimensions mm, inches
123.5 4.86" 6.5 0.26"
108 4.25"
35 mm x15 EN/IEC 60715 6 0.24" 6.5 0.26" 0.24"
6
74 2.91" 110 4.33" 0.16" 74 2.91" 148 5.83"
4
75 mm EN/IEC 60715

12 70 2.76" 10 0.39" 10 0.39" 12 90 3.54" 10 0.39" 20 0.79" 1SBC100132S0201
0.47" 0.47"
AF50, AF63, AF75 AF95B
