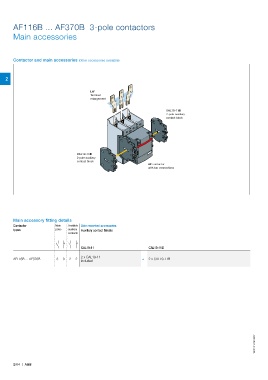

AF116B ... AF370B 3-pole contactors

Main accessories

Contactor and main accessories (other accessories available)

2

LW
Terminal
enlargement

CAL19-11B
2-pole auxiliary
contact block

CAL19-11B
2-pole auxiliary
contact block
AF contactor
with bar connections

Main accessory fitting details
Contactor Main Available Side-mounted accessories
types poles auxiliary Auxiliary contact blocks
contacts

CAL19-11 CAL19-11B

2 x CAL19-11
AF116B ... AF370B 3 0 2 2 + 2 x CAL19-11B
included

1SFC101274C0201

2/64 | ABB
