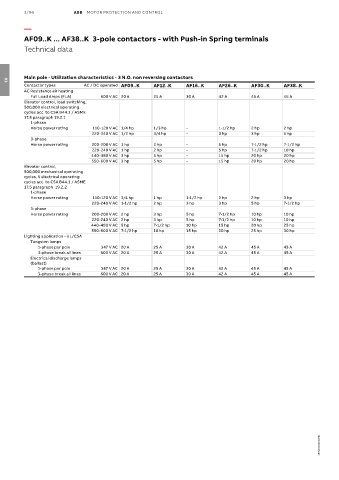

Page 170 - Motor protection and control Manual motor starters, contactors and overload relays

3/96 ABB MOTOR PROTECTION AND CONTROL

—

AF09..K ... AF38..K 3-pole contactors - with Push-in Spring terminals
Technical data

Main pole - Utilization characteristics - 3 N.O. non reversing contactors
03
Contactor types AC / DC operated AF09..K AF12..K AF16..K AF26..K AF30..K AF38..K
AC Resistance air heating
Full Load Amps (FLA) 600 V AC 20 A 25 A 30 A 42 A 45 A 45 A
Elevator control, load switching,
500,000 electrical operating
cycles acc. to CSA B44.1 / ASME
17.5 paragraph 19.2.1
1-phase
Horse power rating 110-120 V AC 1/4 hp 1/3 hp – 1-1/2 hp 2 hp 2 hp
220-240 V AC 1/2 hp 3/4 hp – 3 hp 3 hp 5 hp
3-phase
Horse power rating 200-208 V AC 1 hp 2 hp – 5 hp 7-1/2 hp 7-1/2 hp
220-240 V AC 1 hp 2 hp – 5 hp 7-1/2 hp 10 hp
440-480 V AC 3 hp 5 hp – 15 hp 20 hp 20 hp
550-600 V AC 3 hp 5 hp – 15 hp 20 hp 20 hp
Elevator control,
500,000 mechanical operating
cycles, 5 electrical operating
cycles acc. to CSA B44.1 / ASME
17.5 paragraph 19.2.2
1-phase
Horse power rating 110-120 V AC 3/4 hp 1 hp 1-1/2 hp 2 hp 2 hp 3 hp
220-240 V AC 1-1/2 hp 2 hp 3 hp 3 hp 5 hp 7-1/2 hp
3-phase
Horse power rating 200-208 V AC 2 hp 3 hp 5 hp 7-1/2 hp 10 hp 10 hp
220-240 V AC 2 hp 3 hp 5 hp 7-1/2 hp 10 hp 10 hp
440-480 V AC 5 hp 7-1/2 hp 10 hp 15 hp 20 hp 25 hp
550-600 V AC 7-1/2 hp 10 hp 15 hp 20 hp 25 hp 30 hp
Lighting application - UL/CSA
Tungsten lamps
1-phase per pole 347 V AC 20 A 25 A 30 A 42 A 45 A 45 A
3-phase break all lines 600 V AC 20 A 25 A 30 A 42 A 45 A 45 A
Electrical discharge lamps
(ballast)
1-phase per pole 347 V AC 20 A 25 A 30 A 42 A 45 A 45 A
3-phase break all lines 600 V AC 20 A 25 A 30 A 42 A 45 A 45 A

1SBC100435S0201
