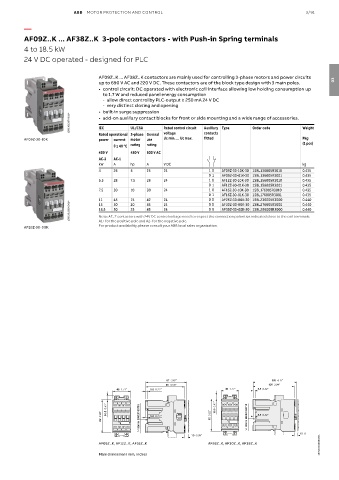

ABB MOTOR PROTECTION AND CONTROL 3/91

—

AF09Z..K ... AF38Z..K 3-pole contactors - with Push-in Spring terminals
4 to 18.5 kW
24 V DC operated - designed for PLC

AF09Z..K ... AF38Z..K contactors are mainly used for controlling 3-phase motors and power circuits
up to 690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles. 03
• control circuit: DC operated with electronic coil interface allowing low holding consumption up
to 1.7 W and reduced panel energy consumption
- allow direct control by PLC-output ≥ 250 mA 24 V DC
- very distinct closing and opening
• built-in surge suppression
1SBC101597V0014 • add-on auxiliary contact blocks for front or side mounting and a wide range of accessories. Weight

IEC
UL/CSA
Order code
Rated control circuit
Auxiliary Type
Rated operational 3-phase General voltage contacts
AF09Z-30-10K power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V DC kg
4 25 5 25 24 1 0 AF09Z-30-10K-30 1SBL136005R3010 0.435
0 1 AF09Z-30-01K-30 1SBL136005R3001 0.435
5.5 28 7.5 28 24 1 0 AF12Z-30-10K-30 1SBL156005R3010 0.435
0 1 AF12Z-30-01K-30 1SBL156005R3001 0.435
7.5 30 10 30 24 1 0 AF16Z-30-10K-30 1SBL176005R3010 0.435
0 1 AF16Z-30-01K-30 1SBL176005R3001 0.435
11 45 15 42 24 0 0 AF26Z-30-00K-30 1SBL236005R3000 0.440
1SBC101599V0014 18.5 50 25 45 24 0 0 AF38Z-30-00K-30 1SBL296005R3000 0.440
20
AF30Z-30-00K-30 1SBL276005R3000
24
45
0.440
0 0
50
15
Note: AF..Z contactors with 24V DC control voltage need to respect the connection polarities indicated close to the coil terminals:
A1+ for the positive pole and A2- for the negative pole.
AF26Z-30-00K For product availability, please consult your ABB local sales organization.

97 3.82" 106 4.17"
91 3.58" 100 3.94"
45 1.77" 5.5 0.22" 45 1.77" 5.5 0.22"

10.5 0.41" 10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 82 3.22" 35mm EN/EC 60715 5.5 0.22"

15 0.59"
10 0.39"
AF09Z..K, AF12Z..K, AF16Z..K AF26Z..K, AF30Z..K, AF38Z..K 1SBC100498S0201

Main dimensions mm, inches
