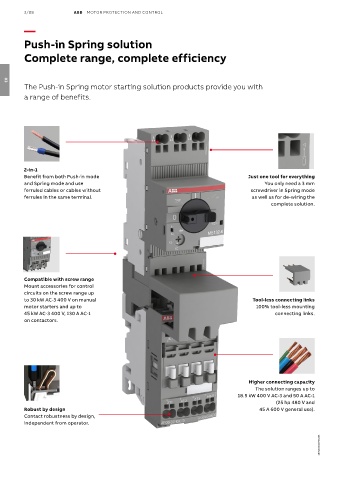

Push-in Spring solution

Complete range, complete efficiency

The Push-in Spring motor starting solution products provide you with
03
a range of benefits.

2-in-1
Benefit from both Push-in mode Just one tool for everything
and Spring mode and use You only need a 3 mm
ferruled cables or cables without screwdriver in Spring mode
ferrules in the same terminal. as well as for de-wiring the
complete solution.

Compatible with screw range
Mount accessories for control
circuits on the screw range up
to 30 kW AC-3 400 V on manual Tool-less connecting links
motor starters and up to 100% tool-less mounting
45 kW AC-3 400 V, 130 A AC-1 connecting links.
on contactors.

Higher connecting capacity
The solution ranges up to
18.5 kW 400 V AC-3 and 50 A AC-1
(25 hp 480 V and
Robust by design 45 A 600 V general use).
Contact robustness by design,
independent from operator.
