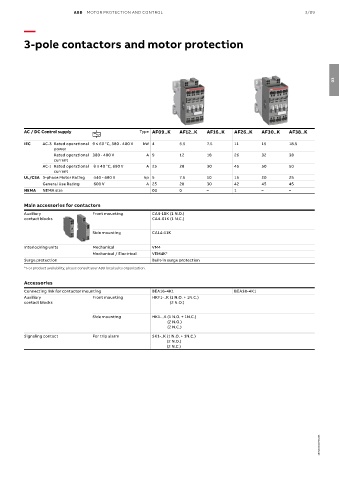

Page 163 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/89

—

3-pole contactors and motor protection

03

AC / DC Control supply Type AF09..K AF12..K AF16..K AF26..K AF30..K AF38..K

IEC AC-3 Rated operational θ ≤ 60 °C, 380 - 400 V kW 4 5.5 7.5 11 15 18.5
power
Rated operational 380 - 400 V A 9 12 18 26 32 38
current
AC-1 Rated operational θ ≤ 40 °C, 690 V A 25 28 30 45 50 50
current
UL/CSA 3-phase Motor Rating 440 - 480 V hp 5 7.5 10 15 20 25
General Use Rating 600 V A 25 28 30 42 45 45
NEMA NEMA size 00 0 – 1 – –

Main accessories for contactors
Auxiliary Front mounting CA4-10K (1 N.O.)
contact blocks CA4-01K (1 N.C.)

Side mounting CAL4-11K

Interlocking units Mechanical VM4
Mechanical / Electrical VEM4K*
Surge protection Built-in surge protection
* For product availability, please consult your ABB local sales organization.

Accessories
Connecting link for contactor mounting BEA16-4K1 BEA38-4K1
Auxiliary Front mounting HKF1-..K (1 N.O. + 1N.C.)
contact blocks (2 N.O.)

Side mounting HK1-..K (1 N.O. + 1N.C.)
(2 N.O.)
(2 N.C.)
Signaling contact For trip alarm SK1-..K (1 N.O. + 1N.C.)
(2 N.O.)
(2 N.C.)
