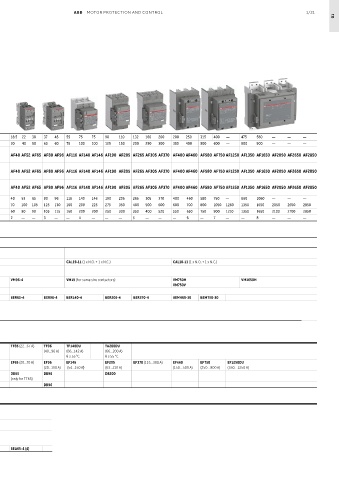

Page 23 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 1/21
01

IEC (1) AC-3 Rated operational power θ ≤ 60 °C (2), 400 V kW 4 5.5 4 5.5 7.5 4 5.5 7.5 11 15 18.5 18.5 22 30 37 45 55 75 75 90 110 132 160 200 200 250 315 400 — 475 560 — — —
UL/CSA 3-phase motor rating 480 V hp 3 5 5 7.5 10 5 7.5 10 15 20 25 30 40 50 60 60 75 100 100 125 150 200 250 300 350 400 500 600 — 800 900 — — —
AC / DC Control supply Type — — — — — AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650 AF2850

AC Control supply Type B6 B7 AS09 AS12 AS16 AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650 AF2850

DC Control supply Type BC6 BC7 ASL09 ASL12 ASL16 AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650 AF2850

IEC AC-3 Rated operational current θ ≤ 60 °C (2), 400 V A 8.5 11.5 9 12 15.5 9 12 18 26 32 38 40 53 65 80 96 116 140 146 190 205 265 305 370 400 460 580 750 — 860 1060 — — —
AC-1 Rated operational current θ ≤ 40 °C, 690 V A 20 (400 V) 20 (400 V) 22 24 24 25 28 30 45 50 50 70 100 105 125 130 160 200 225 275 350 400 500 600 600 700 800 1050 1260 1350 1650 2050 2650 2850
UL/CSA General use rating 600 V A 12 (300 V) 16 20 20 20 25 28 30 45 50 50 60 80 90 105 115 160 200 200 250 300 350 400 520 550 650 750 900 1210 1350 1650 2100 2700 2850
NEMA NEMA Size — — 00 00 0 00 0 — 1 — — 2 — — 3 — — 4 — — — 5 — — — 6 — 7 — — 8 — — —
(1) 1000 V IEC ratings available for AF80, AF96 and AF146 … AF2650 contactors.
(2) θ ≤ 55 °C for mini contactors and AF400 ... AF2650 contactors.

Main accessories
Auxiliary contact blocks Front mounting CAF6 CA3-10 (1 x N.O.) CA4-10 (1 x N.O.)
CA3-01 (1 x N.C.) CA4-01 (1 x N.C.)
Side mounting CA6 CAL4-11 (1 x N.O. + 1 x N.C.) CAL19-11 (1 x N.O. + 1 x N.C.) CAL18-11 (1 x N.O. + 1 x N.C.)
Timers Electronic TEF3-ON TEF4-ON
TEF3-OFF TEF4-OFF
Interlocking units (3) Mechanical VM3 VM4 VM96-4 VM19 (for same size contactors) VM750H VM1650H
VM750V
Mechanical / Electrical VEM4
Connection sets For reversing contactors BSM6-30 BER16C-3 BER16-4 BER38-4 BER65-4 BER96-4 BER140-4 BER205-4 BER370-4 BEM460-30 BEM750-30
Surge suppressors Varistor (AC/DC) RV-BC6 RV5 (24…440 V) Built-in surge protection
RC type (AC) RC5-1 (24…440 V)
Transil diode (DC) RD7 RT5 (12…264 V)
(3) See available reversing contactors VB6, VB7 and VAS09 ... VAS16.
Overload relays
Thermal relays Class 10 T16 (0.10…16 A) T16 (0.10…16 A) TF42 (0.10…38 A) TF65 (22...67 A) TF96 TF140DU TA200DU
(Class 10A for TF140, TA200DU) (40...96 A) (66...142 A) (66...200 A)
θ ≤ 55 °C θ ≤ 55 °C
Electronic relays Class 10E, 20E, 30E E16DU (0.10…18.9 A) EF19 (0.10…18.9 A) EF19 (0.10…18.9 A) EF65 (20...70 A) EF96 EF146 EF205 EF370 (115...380 A) EF460 EF750 EF1250DU
EF45 (9…45 A) (20...100 A) (54...150 A) (63...210 A) (150…500 A) (250…800 A) (350…1250 A)
Accessories Thermal relays DB16 DB42 DB65 DB96 DB200
(for single mounting) (only for TF65)
Electronic relays DB16E DB19EF DB45EF DB96
Manual motor starters

Thermal / magnetic protection MS116 (0.10…32 A) MS116 (0.10...32 A) MS165
Class 10 Ics up to 50 kA for class 10A lcs up to 50 kA for class 10A (10...80 A)
lcs up to 100 kA
MS132 (0.10…32 A) MS132 (0.10...32 A)
Ics up to 100 kA lcs up to 100 kA
Magnetic only types MO132 (0.16...32A) MO132 (0.16...32 A) MO165
Ics up to 100 kA (16...80 A)
lcs up to 100 kA
Accessories For contactor mounting BEA7/132 BEA16-3 BEA16-4 BEA38-4 BEA65-4 (4)
(4) BEA65-4 suitable for MS165 and MO165 only.
