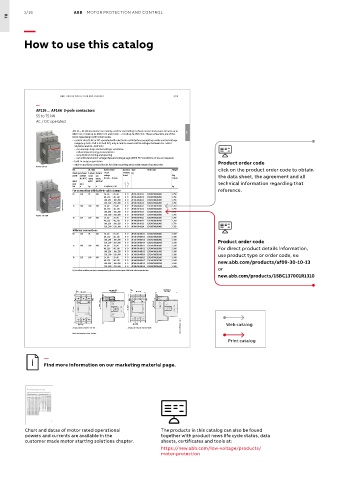

How to use this catalog

ABB MOTOR PROTECTION AND CONTROL 3/19
—
AF116 ... AF146 3-pole contactors
55 to 75 kW
AC / DC operated
AF116 ... AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC, AF146 up to 1000 V AC and AF116 ... AF146 up to 260 V DC. These contactors are of the 03
block type design with 3 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V
50/60 Hz and 20...500 V DC
-can manage large control voltage variations
- reduced panel energy consumption
1SFC101005V0001 -very distinct closing and opening
-can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories. Product order code
AF146-30-00
IEC UL / CSA Rated control Auxiliary Type Order code Weight click on the product order code to obtain
Rated operational 3-phase General circuit contacts (1)
power current motor use voltage fitted Pkg the data sheet, the agreement and all
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1 technical information regarding that
kW A hp A V 50/60 Hz V DC kg
For connection with built-in cable clamps reference.
55 160 75 160 24...60 20...60 00 AF116-30-00-11 1SFL427001R1100 1.750
48...130 48...130 00 AF116-30-00-12 1SFL427001R1200 1.750
1.750
00
1SFL427001R1300
AF116-30-00-13
100...250
100...250
1SFC101006V0001 75 200 100 200 250...500 250...500 00 AF116-30-00-14 1SFL427001R1400 1.750
AF140-30-00-11
00
1.750
24...60
20...60
1SFL447001R1100
48...130
100...250
1.750
100...250 48...130 00 AF140-30-00-12 1SFL447001R1200 1.750
1SFL447001R1300
00
AF140-30-00-13
AF146-30-00B 250...500 250...500 00 AF140-30-00-14 1SFL447001R1400 1.750
75 225 100 200 24...60 20...60 00 AF146-30-00-11 1SFL467001R1100 1.750
48...130 48...130 00 AF146-30-00-12 1SFL467001R1200 1.750
100...250 100...250 00 AF146-30-00-13 1SFL467001R1300 1.750
250...500 250...500 00 AF146-30-00-14 1SFL467001R1400 1.750
With bar connections
55 160 75 160 24...60 20...60 00 AF116-30-00B-11 1SFL427002R1100 1.500
48...130 48...130 00 AF116-30-00B-12 1SFL427002R1200 1.500
100...250 100...250 00 AF116-30-00B-13 1SFL427002R1300 1.500 Product order code
250...500 250...500 00 AF116-30-00B-14 1SFL427002R1400 1.500
75 200 100 200 24...60 20...60 00 AF140-30-00B-11 1SFL447002R1100 1.500
48...130 48...130 00 AF140-30-00B-12 1SFL447002R1200 1.500 For direct product details information,
100...250 100...250 00 AF140-30-00B-13 1SFL447002R1300 1.500
250...500 250...500 00 AF140-30-00B-14 1SFL447002R1400 1.500 use product type or order code, ex:
75 225 100 200 24...60 20...60 00 AF146-30-00B-11 1SFL467002R1100 1.500
48...130 48...130 00 AF146-30-00B-12 1SFL467002R1200 1.500 new.abb.com/products/af09-30-10-13
100...250 100...250 00 AF146-30-00B-13 1SFL467002R1300 1.500
250...500 250...500 00 AF146-30-00B-14 1SFL467002R1400 1.500
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization. or
new.abb.com/products/1SBC137001R1310
E SECTION E-E
E SECTION E-E 90 3.54" 126 4.96"
90 3.54" 126 4.96"
D D D D
55.5 0.22" 19.5 4.96" 55.5 2.18" 19.5 0.77"
150 5.91" 150 5.91"
1SFC101088C0201 - Rev. D
30 1.18" 30 1.18" Web catalog
AF116, AF140, AF146-30-00 AF116, AF140, AF146-30-00B
Main dimensions mm, inches
Print catalog
—
Find more information on our marketing material page.
Chart and datas of motor rated operational The products in this catalog can also be found
powers and currents are available in the together with product news life cycle status, data
customer made motor starting solutions chapter. sheets, certificates and tools at:
https://new.abb.com/low-voltage/products/
motor-protection
