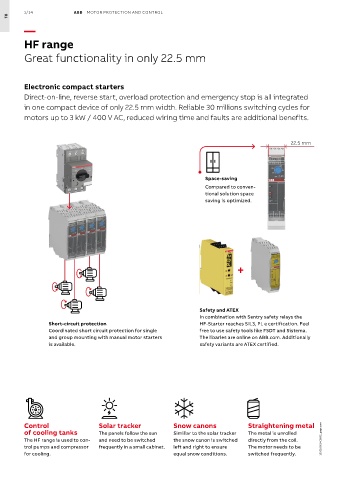

Page 16 - Motor protection and control Manual motor starters, contactors and overload relays

1/14 ABB MOTOR PROTECTION AND CONTROL
01
—

HF range

Great functionality in only 22.5 mm

Electronic compact starters
Direct-on-line, reverse start, overload protection and emergency stop is all integrated

in one compact device of only 22.5 mm width. Reliable 30 millions switching cycles for
motors up to 3 kW / 400 V AC, reduced wiring time and faults are additional benefits.

22.5 mm

Space-saving
Compared to conven-
tional solution space
saving is optimized.

+

Safety and ATEX
In combination with Sentry safety relays the
Short-circuit protection HF-Starter reaches SIL3, PL e certification. Feel
Coordinated short circuit protection for single free to use safety tools like FSDT and Sistema.
and group mounting with manual motor starters The libaries are online on ABB.com. Additionally
is available. safety variants are ATEX certified.

Control Solar tracker Snow canons Straightening metal
of cooling tanks The panels follow the sun Similiar to the solar tracker The metal is unrolled
The HF range is used to con- and need to be switched the snow canon is switched directly from the coil. 1SBC100214C0202_page com
trol pumps and compressor frequently in a small cabinet. left and right to ensure The motor needs to be
for cooling. equal snow conditions. switched frequently.
