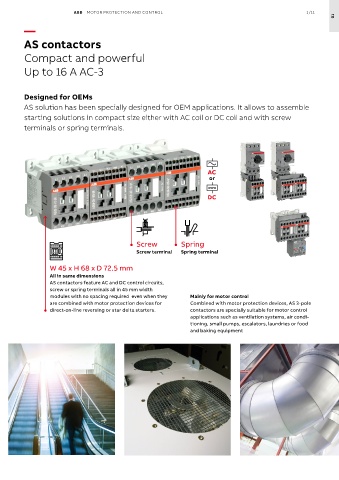

ABB MOTOR PROTECTION AND CONTROL 1/11
01
—

AS contactors

Compact and powerful

Up to 16 A AC-3

Designed for OEMs
AS solution has been specially designed for OEM applications. It allows to assemble

starting solutions in compact size either with AC coil or DC coil and with screw
terminals or spring terminals.

AC
or

DC

Screw Spring
Screw terminal Spring terminal

W 45 x H 68 x D 72.5 mm
All in same dimensions
AS contactors feature AC and DC control circuits,
screw or spring terminals all in 45 mm width
modules with no spacing required even when they Mainly for motor control
are combined with motor protection devices for Combined with motor protection devices, AS 3-pole
direct-on-line reversing or star delta starters. contactors are specially suitable for motor control
applications such as ventilation systems, air condi-
tioning, small pumps, escalators, laundries or food
and baking equipment
