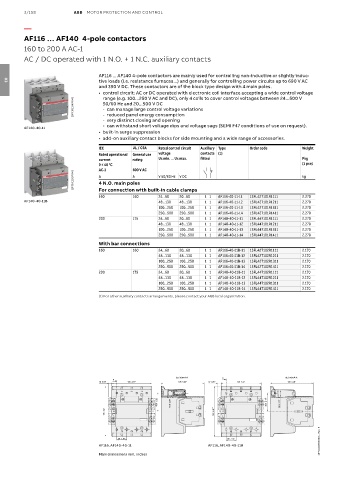

Page 232 - Motor protection and control Manual motor starters, contactors and overload relays

3/158 ABB MOTOR PROTECTION AND CONTROL

—
AF116 … AF140 4-pole contactors

160 to 200 A AC-1
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts

AF116 ... AF140 4-pole contactors are mainly used for controlling non-inductive or slightly induc-
tive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC
03
and 350 V DC. These contactors are of the block type design with 4 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V
1SFC101154V0001 50/60 Hz and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
AF140-40-11
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts (1)
current rating Uc min. ... Uc max. fitted Pkg
θ ≤ 40 °C (1 pce)
AC-1 600 V AC
1SFC101192V0001 A 4 N.O. main poles V 50/60 Hz V DC kg
A
For connection with built-in cable clamps
160 160 24...60 20...60 1 1 AF116-40-11-11 1SFL427101R1111 2.270
AF140-40-11B 48...130 48...130 1 1 AF116-40-11-12 1SFL427101R1211 2.270
100...250 100...250 1 1 AF116-40-11-13 1SFL427101R1311 2.270
250...500 250...500 1 1 AF116-40-11-14 1SFL427101R1411 2.270
200 175 24...60 20...60 1 1 AF140-40-11-11 1SFL447101R1111 2.270
48...130 48...130 1 1 AF140-40-11-12 1SFL447101R1211 2.270
100...250 100...250 1 1 AF140-40-11-13 1SFL447101R1311 2.270
250...500 250...500 1 1 AF140-40-11-14 1SFL447101R1411 2.270
With bar connections
160 160 24...60 20...60 1 1 AF116-40-11B-11 1SFL427102R1111 2.170
48...130 48...130 1 1 AF116-40-11B-12 1SFL427102R1211 2.170
100...250 100...250 1 1 AF116-40-11B-13 1SFL427102R1311 2.170
250...500 250...500 1 1 AF116-40-11B-14 1SFL427102R1411 2.170
200 175 24...60 20...60 1 1 AF140-40-11B-11 1SFL447102R1111 2.170
48...130 48...130 1 1 AF140-40-11B-12 1SFL447102R1211 2.170
100...250 100...250 1 1 AF140-40-11B-13 1SFL447102R1311 2.170
250...500 250...500 1 1 AF140-40-11B-14 1SFL447102R1411 2.170
(1) For other auxiliary contacts arrangements, please contact your ABB local organization.

A-A

SECTION A-A A A SECTION SECTION A-A
SECTION A-A
A A
128 5.04"
10 0.39" 10 0.39" 120 4.72" 120 4.72" 128 5.04" 10 0.39" 10 0.39" 120 4.72" 120 4.72" 128 5.04" 128 5.04"
55.5 0.22" 55.5 0.22" 19.5 4.96" 19.5 4.96" 55.5 2.18" 55.5 2.18" 19.5 0.77" 19.5 0.77"
150 5.91" 150 5.91" 150 5.91" 150 5.91"

1SFC101199C0201 - Rev. B
30 1.18" 30 1.18" 30 1.18" 30 1.18"
AF116, AF140-40-11 AF116, AF140-40-11B
Main dimensions mm, inches
