ABB MOTOR PROTECTION AND CONTROL 3/163

—

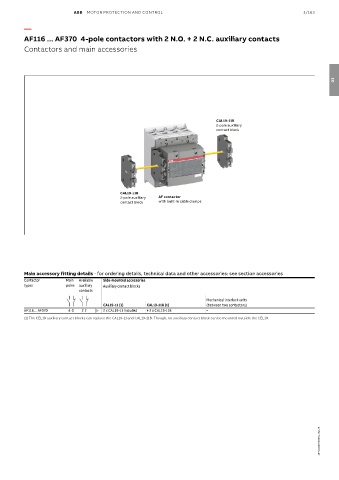

AF116 ... AF370 4-pole contactors with 2 N.O. + 2 N.C. auxiliary contacts
Contactors and main accessories

03

CAL19-11B
2-pole auxiliary
contact block

CAL19-11B
2-pole auxiliary AF contactor
contact block with built-in cable clamps

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Contactor Main Available Side-mounted accessories
types poles auxiliary Auxiliary contact blocks
contacts
Mechanical interlock units
CAL19-11 (1) CAL19-11B (1) (between two contactors)
AF116 ... AF370 4 0 2 2 2 x CAL19-11 included + 2 x CAL19-11B –
(1) The CEL19 auxiliary contact blocks can replace the CAL19-11 and CAL19-11B. Though, no auxiliary contact block can be mounted outside the CEL19.

1SFC101207C0201 - Rev. B
