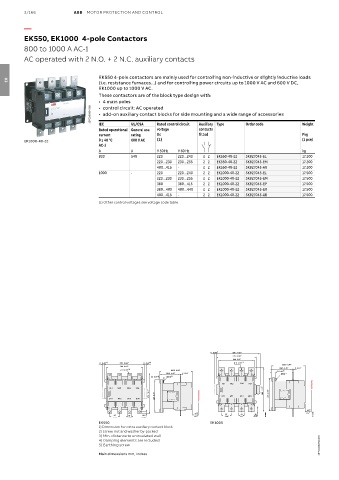

EK550, EK1000 4-pole Contactors

800 to 1000 A AC-1
AC operated with 2 N.O. + 2 N.C. auxiliary contacts

EK550 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads
(i.e. resistance furnaces...) and for controlling power circuits up to 1000 V AC and 600 V DC,
03
EK1000 up to 1000 V AC.
These contactors are of the block type design with:
• 4 main poles
• control circuit: AC operated
1SFC98099-069 • add-on auxiliary contact blocks for side mounting and a wide range of accessories

IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts
current rating Uc fitted Pkg
EK1000-40-22 θ ≤ 40 °C 600 V AC (1) (1 pce)
AC-1
A A V 50 Hz V 60 Hz kg
800 540 220 220…240 2 2 EK550-40-22 SK827043-EL 17.200
220…230 230…255 2 2 EK550-40-22 SK827043-EM 17.200
400…415 - 2 2 EK550-40-22 SK827043-AR 17.200
1000 - 220 220…240 2 2 EK1000-40-22 SK827045-EL 17.500
220…230 230…255 2 2 EK1000-40-22 SK827045-EM 17.500
380 380…415 2 2 EK1000-40-22 SK827045-EP 17.500
380…400 400…440 2 2 EK1000-40-22 SK827045-ER 17.500
400…415 - 2 2 EK1000-40-22 SK827045-AR 17.500
(1) Other control voltages see voltage code table.

11 0.43" 1) 296 11.65"
270 10.63"
244 9.61"
11 0.43" 1) 270 10.63" 11 0.43" 1) ø 11 0.43" 2)
225.5 8.88"
244 9.61" 139.5 5.49" 8 0.31"
ø 11 0.43" 2) 225.5 8.88" 23 0.91" 4)
139.5 5.49" 6 0.24" (M10) 5)
23 0.91" 4) (M10) 5)
1/L1 3/L2 5/L3 7/L4
1/L1 3/L2 5/L3 7/L4 299 11.77"
272 10.71" 223 8.78" 6/T3 223 8.78"
2/T1 4/T2 6/T3 8/T4 2/T1 4/T2 8/T4
40 3)
40 3) 40 E1693D 1.57" E1694D
67
20
67 25 12.5 1.57" 2.64" 1.57" 0.79"
2.64" 0.98" 0.49"
EK550 EK1000
1) Dimension for extra auxiliary contact block
2) Screw, nut and washer by-packed
3) Min. distance to uninsulated wall
4) Damping elements are included
5) Earthing screw 1SFC101219C0201
Main dimensions mm, inches
