2/4 ABB MOTOR PROTECTION AND CONTROL

—

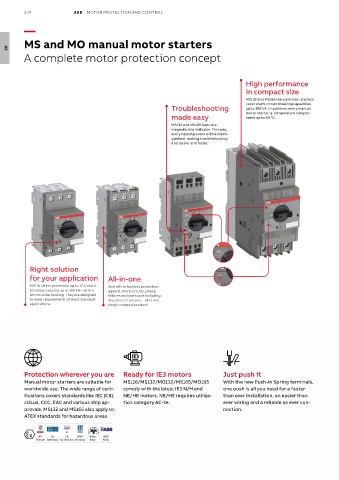

MS and MO manual motor starters

02
A complete motor protection concept

High performance
in compact size
MS132 and MS165 manual motor starters
cover short-circuit breaking capacities
Troubleshooting up to 100 kA. In addition, every manual
made easy motor starter is temperature compen-
sated up to 60 °C.
MS132 and MS165 feature a
magnetic trip indicator. This way,
every tripping event will be distin-
guished, making troubleshooting
a lot easier and faster.

Right solution
for your application All-in-one
MS116 offers protection up to 32 A and a ABB offers fuseless protection
breaking capacity up to 100 kA – all in a against short-circuits, phase
45 mm wide housing. They are designed failures and overloads including
to meet requirements of most standard disconnect function – all in one
applications. single compact product.

IE3

Protection wherever you are Ready for IE3 motors Just push it
Manual motor starters are suitable for MS116/MS132/MO132/MS165/MO165 With the new Push-in Spring terminals,
worldwide use. The wide range of certi- comply with the latest IE3 N/H and one push is all you need for a faster
fications covers standards like IEC (CB), NE/HE motors. NE/HE requires utiliza- than ever installation, an easier than
cULus, CCC, EAC and various ship ap- tion category AC-3e. ever wiring and a reliable as ever con-
provals. MS132 and MS165 also apply to nection.
ATEX standards for hazardous areas.

LR
DNV
BV GL LR DNV RINa ABS
ABS
France Germany Gr. Britain Norway Italy USA
Rina
