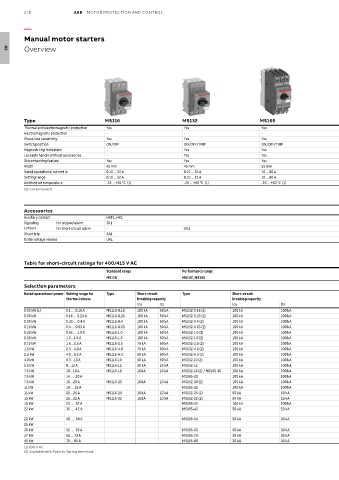

Page 34 - Motor protection and control Manual motor starters, contactors and overload relays

2/8 ABB MOTOR PROTECTION AND CONTROL

—

Manual motor starters
Overview
02

Type MS116 MS132 MS165 MO132 MO165 MS132-T
Thermal and electromagnetic protection Yes Yes Yes - - Yes
Electromagnetic protection - - - Yes Yes -
Phase loss sensitivity Yes Yes Yes - - Yes
Switch position ON/OFF ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP
Magnetic trip indication - Yes Yes - - Yes
Lockable handle without accessories - Yes Yes Yes Yes Yes
Disconnecting feature Yes Yes Yes Yes Yes Yes
Width 45 mm 45 mm 55 mm 45 mm 55 mm 45 mm
Rated operational current Ie 0.10 ... 32 A 0.10 ... 32 A 10 ... 80 A 0.16 ... 32 A 16 ... 80 A 0.16 ... 25 A
Setting range 0.10 ... 32 A 0.10 ... 32 A 10 ... 80 A - - 0.10 ... 25 A
Ambient air temperature -25 ... +55 °C (1) -25 ... +60 °C (1) -25 ... +60 °C (1) -25 ... +60 °C -25 ... +60 °C -25 ... +60 °C (1)
(1) Compensated

Accessories
Auxiliary contact HKF1, HK1 HKF1, HK1 HKF1, HK1
Signaling for tripped alarm SK1 SK1 SK1
contact for short-circuit alarm - CK1 - CK1
Shunt trip AA1 AA1 AA1
Undervoltage release UA1 UA1 UA1

Table for short-circuit ratings for 400/415 V AC
Standard range Performance range Performance range Transformer protection
MS116 MS132, MS165 MO132, MO165 MS132-T
Selection parameters
Rated operational power Setting range for Type Short-circuit Type Short-circuit Type Short-circuit Type Short-circuit breaking
thermal release breaking capacity breaking capacity breaking capacity capacity
Icu Ics Icu Ics Icu Ics Icu / Ics
0.03 kW (1) 0.1 … 0.16 A MS116-0.16 100 kA 50 kA MS132-0.16 (2) 100 kA 100 kA MO132-0.16 100 kA 100 kA MS132-0.16T (2) 100 kA
0.06 kW 0.16 … 0.25 A MS116-0.25 100 kA 50 kA MS132-0.25 (2) 100 kA 100 kA MO132-0.25 100 kA 100 kA MS132-0.25T (2) 100 kA
0.09 kW 0.25 … 0.4 A MS116-0.4 100 kA 50 kA MS132-0.4 (2) 100 kA 100 kA MO132-0.4 100 kA 100 kA MS132-0.4T (2) 100 kA
0.18 kW 0.4 … 0.63 A MS116-0.63 100 kA 50 kA MS132-0.63 (2) 100 kA 100 kA MO132-0.63 100 kA 100 kA MS132-0.63T (2) 100 kA
0.25 kW 0.63 … 1.0 A MS116-1.0 100 kA 50 kA MS132-1.0 (2) 100 kA 100 kA MO132-1.0 100 kA 100 kA MS132-1.0T (2) 100 kA
0.55 kW 1.0…1.6 A MS116-1.6 100 kA 50 kA MS132-1.6 (2) 100 kA 100 kA MO132-1.6 100 kA 100 kA MS132-1.6T (2) 100 kA
0.75 kW 1.6…2.5 A MS116-2.5 75 kA 50 kA MS132-2.5 (2) 100 kA 100 kA MO132-2.5 100 kA 100 kA MS132-2.5T (2) 100 kA
1.5 kW 2.5…4.0 A MS116-4.0 75 kA 50 kA MS132-4.0 (2) 100 kA 100 kA MO132-4.0 100 kA 100 kA MS132-4.0T (2) 100 kA
2.2 kW 4.0…6.3 A MS116-6.3 50 kA 50 kA MS132-6.3 (2) 100 kA 100 kA MO132-6.3 100 kA 100 kA MS132-6.3T (2) 100 kA
4.0 kW 6.3…10 A MS116-10 50 kA 50 kA MS132-10 (2) 100 kA 100 kA MO132-10 100 kA 100 kA MS132-10T (2) 100 kA
5.5 kW 8…12 A MS116-12 50 kA 25 kA MS132-12 100 kA 100 kA MO132-12 100 kA 100 kA MS132-12T 100 kA
7.5 kW 10…16 A MS116-16 16 kA 16 kA MS132-16 (2) / MS165-16 100 kA 100 kA MO132-16 / MO165-16 100 kA 100 kA MS132-16T (2) 100 kA
7.5 kW 14 ... 20 A MS165-20 100 kA 100 kA MO165-20 100 kA 100 kA
7.5 kW 16…20 A MS116-20 16 kA 10 kA MS132-20 (2) 100 kA 100 kA MO132-20 100 kA 100 kA MS132-20T (2) 100 kA
11 kW 18 … 25 A MS165-25 100 kA 100 kA
11 kW 20…25 A MS116-25 16 kA 10 kA MS132-25 (2) 50 kA 50 kA MO132-25 / MO165-25 50 kA / 100 kA 50 kA / 100 kA MS132-25T (2) 50 kA
15 kW 25…32 A MS116-32 16 kA 10 kA MS132-32 (2) 50 kA 25 kA MO132-32 50 kA 25 kA Transformer protection:
15 kW 23 ... 32 A MS165-32 100 kA 100 kA MO165-32 100 kA 100 kA The instantaneous short-circuit current
22 kW 30 ... 42 A MS165-42 50 kA 50 kA MO165-42 50 kA 50 kA setting is 20 times the rated operational
current.
22 kW 40 ... 54 A MS165-54 50 kA 30 kA MO165-54 50 kA 30 kA
25 kW -
30 kW 52 ... 65 A MS165-65 50 kA 30 kA MO165-65 50 kA 30 kA
37 kW 62 ... 73 A MS165-73 30 kA 30 kA MO165-73 30 kA 30 kA
45 kW 70 ... 80 A MS165-80 30 kA 30 kA MO165-80 30 kA 30 kA
(1) 690 V AC
(2) Available with Push-in Spring terminals.
