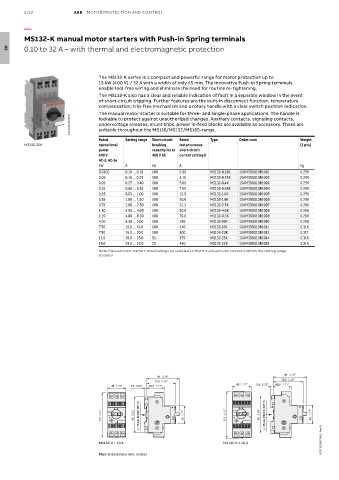

2/12 ABB MOTOR PROTECTION AND CONTROL

—

MS132-K manual motor starters with Push-in Spring terminals
0.10 to 32 A – with thermal and electromagnetic protection
02

The MS132-K series is a compact and powerful range for motor protection up to
15 kW (400 V) / 32 A with a width of only 45 mm. The innovative Push-in Spring terminals
enable tool-free wiring and eliminate the need for routine re-tightening.
The MS132-K also has a clear and reliable indication of fault in a separate window in the event
of short-circuit tripping. Further features are the built-in disconnect function, temperature
compensation, trip-free mechanism and a rotary handle with a clear switch position indication.
The manual motor starter is suitable for three- and single-phase applications. The handle is
2CDC241025V0017 lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts,
undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These are
suitable throughout the MS116/MS132/MS165-range.
Rated Setting range Short-circuit Rated Type Order code Weight
MS132-32K operational breaking instantaneous (1 pce)
power capacity Ics at short-circuit
400 V 400 V AC current setting li
AC-3, AC-3e
kW A kA A kg
0.03(1) 0.10 … 0.16 100 2.00 MS132-0.16K 1SAM350010R1001 0.256
0.06 0.16 … 0.25 100 3.10 MS132-0.25K 1SAM350010R1002 0.256
0.09 0.25 … 0.40 100 5.00 MS132-0.4K 1SAM350010R1003 0.256
0.18 0.40 … 0.63 100 7.90 MS132-0.63K 1SAM350010R1004 0.256
0.25 0.63 … 1.00 100 12.5 MS132-1.0K 1SAM350010R1005 0.256
0.55 1.00 … 1.60 100 20.0 MS132-1.6K 1SAM350010R1006 0.298
0.75 1.60 … 2.50 100 31.3 MS132-2.5K 1SAM350010R1007 0.280
1.50 2.50 … 4.00 100 50.0 MS132-4.0K 1SAM350010R1008 0.286
2.20 4.00 … 6.30 100 78.8 MS132-6.3K 1SAM350010R1009 0.289
4.00 6.30 … 10.0 100 150 MS132-10K 1SAM350010R1010 0.296
7.50 10.0 … 16.0 100 240 MS132-16K 1SAM350010R1011 0.316
7.50 16.0 … 20.0 100 300 MS132-20K 1SAM350010R1013 0.317
11.0 20.0 … 25.0 50 375 MS132-25K 1SAM350010R1014 0.316
15.0 25.0 … 32.0 25 480 MS132-32K 1SAM350010R1015 0.316
Note: Manual motor starters should always be selected so that the actual motor current is within the setting range.
(1) 690 V

81 3.19"
81 3.19"
72.5 2.85"
72.5 2.85"
45 1.77" 5.5 0.22" 43.5 1.71"
45 1.77" 5.5 0.22" 43.5 1.71"

112 4.41" 90 3.54" 35mm EN/EC 60715 45 1.77" 112 4.41" 90 3.54" 35mm EN/EC 60715 45 1.77"

2CDC131062C0201 - Rev. B

MS132-K > 10 A MS132-K ≤ 10 A
Main dimensions mm, inches
