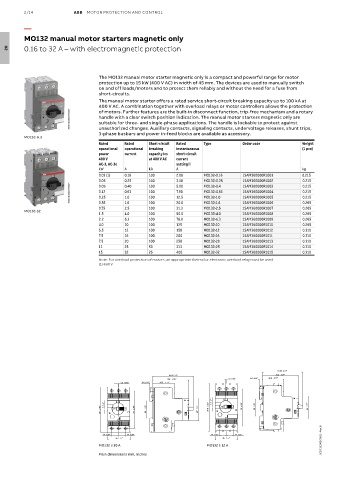

Page 40 - Motor protection and control Manual motor starters, contactors and overload relays

2/14 ABB MOTOR PROTECTION AND CONTROL

—
MO132 manual motor starters magnetic only

0.16 to 32 A – with electromagnetic protection
02

The MO132 manual motor starter magnetic only is a compact and powerful range for motor
protection up to 15 kW (400 V AC) in width of 45 mm. The devices are used to manually switch
on and off loads/motors and to protect them reliably and without the need for a fuse from
short-circuits.
The manual motor starter offers a rated service short-circuit breaking capacity up to 100 kA at
400 V AC. A combination together with overload relays or motor controllers allows the protection
2CDC241018V0017 handle with a clear switch position indication. The manual motor starters magnetic only are
of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary
suitable for three- and single-phase applications. The handle is lockable to protect against
unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips,
3-phase busbars and power in-feed blocks are available as accessory.
MO132-6.3
Rated Rated Short-circuit Rated Type Order code Weight
operational operational breaking instantaneous (1 pce)
power current capacity Ics short-circuit
400 V at 400 V AC current
AC-3, AC-3e setting li
kW A kA A kg
0.03 (1) 0.16 100 2.00 MO132-0.16 1SAM360000R1001 0.215
0.06 0.25 100 3.10 MO132-0.25 1SAM360000R1002 0.215
2CDC241015V0017 0.12 0.63 100 7.90 MO132-0.63 1SAM360000R1004 0.215
MO132-0.4
100
0.215
0.09
1SAM360000R1003
0.40
5.00
1SAM360000R1005
100
1.0
0.215
0.25
12.5
MO132-1.0
0.55
2.5
100
0.265
0.75 1.6 100 20.0 MO132-1.6 1SAM360000R1006 0.265
1SAM360000R1007
31.3
MO132-2.5
MO132-32
1.5 4.0 100 50.0 MO132-4.0 1SAM360000R1008 0.265
2.2 6.3 100 78.8 MO132-6.3 1SAM360000R1009 0.265
4.0 10 100 125 MO132-10 1SAM360000R1010 0.265
5.5 12 100 150 MO132-12 1SAM360000R1012 0.310
7.5 16 100 200 MO132-16 1SAM360000R1011 0.310
7.5 20 100 250 MO132-20 1SAM360000R1013 0.310
11 25 50 313 MO132-25 1SAM360000R1014 0.310
15 32 25 400 MO132-32 1SAM360000R1015 0.310
Note: For overload protection of motors, an appropriate thermal or electronic overload relay must be used.
(1) 690 V

81.05 3.19"
81.25 3.2" 72.2 2.84"
72.4 2.85" 1.5 0.06" 5.5 0.22" 43.3 0.22"
1.5 0.06" 5.5 0.22" 43.5 1.71"

0.1"
0.1" 1.7 1.77"
3.54" 1.7 2.95" 1.38" 1.77" 3.85" 2.95" 75 1.38" 35 45
90 75 35 45" 97.8

2CDC131062C0201 - Rev. B
14 0.55" 14 0.55" 14 0.55" 14 0.55"
45 1.77" 45 1.77"
MO132 ≤ 10 A MO132 ≥ 12 A
Main dimensions mm, inches
