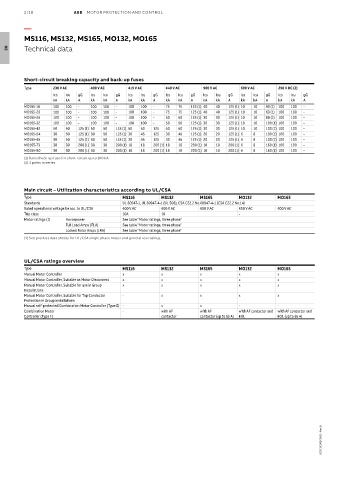

2/18 ABB MOTOR PROTECTION AND CONTROL

—
MS116, MS132, MS165, MO132, MO165

Technical data
02

Short-circuit breaking capacity and back-up fuses
Type 230 V AC 400 V AC 415 V AC 440 V AC 500 V AC 690 V AC 250 V DC (2)
Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG
kA kA A kA kA A kA kA A kA kA A kA kA A kA kA A kA kA A
MO165-16 100 100 - 100 100 - 100 100 - 75 75 125 (1) 40 40 125 (1) 10 10 63 (1) 100 100 -
MO165-20 100 100 - 100 100 - 100 100 - 75 75 125 (1) 40 40 125 (1) 10 10 63 (1) 100 100 -
MO165-25 100 100 - 100 100 - 100 100 - 50 50 125 (1) 30 30 125 (1) 10 10 80 (1) 100 100 -
MO165-32 100 100 - 100 100 - 100 100 - 50 50 125 (1) 30 30 125 (1) 10 10 100 (1) 100 100 -
MO165-42 50 50 125 (1) 50 50 125 (1) 50 50 125 50 50 125 (1) 30 30 125 (1) 10 10 100 (1) 100 100 -
MO165-54 30 50 125 (1) 30 50 125 (1) 30 45 125 30 45 125 (1) 20 20 125 (1) 6 8 100 (1) 100 100 -
MO165-65 30 50 125 (1) 30 50 125 (1) 30 45 125 30 45 125 (1) 20 20 125 (1) 6 8 100 (1) 100 100 -
MO165-73 30 30 200 (1) 30 30 200 (1) 18 18 200 (1) 18 18 200 (1) 10 10 200 (1) 6 8 160 (1) 100 100 -
MO165-80 30 30 200 (1) 30 30 200 (1) 18 18 200 (1) 18 18 200 (1) 10 10 200 (1) 6 8 160 (1) 100 100 -
(1) Rated back-up fuse for short-circuit up to 100 kA
(2) 3 poles in series

Main circuit – Utilization characteristics according to UL/CSA
Type MS116 MS132 MS165 MO132 MO165
Standards UL 60947-1, UL 60947-4-1 (UL 508), CSA C22.2 No.60947-4-1 (CSA C22.2 No.14)
Rated operational voltage Ue acc. to UL/CSA 600 V AC 600 V AC 600 V AC 600 V AC 600 V AC
Trip class 10A 10 -
Motor ratings (1) Horsepower See table "Motor ratings, three phase"
Full Load Amps (FLA) See table "Motor ratings, three phase"
Locked Rotor Amps (LRA) See table "Motor ratings, three phase"
(1) See product data sheets for UL/CSA single phase motor and general use ratings.

UL/CSA ratings overview
Type MS116 MS132 MS165 MO132 MO165
Manual Motor Controller x x x x x
Manual Motor Controller, Suitable as Motor Disconnect x x x x x
Manual Motor Controller, Suitable for use in Group x x x x x
Installations
Manual Motor Controller, Suitable for Tap Conductor - x x x x
Protection in Group Installations
Manual self-protected Combination Motor Controller (Type E) - x x - -
Combination Motor - with AF with AF with AF contactor and with AF contactor and
Controller (Type F) contactor contactor (up to 65 A) EOL EOL (up to 65 A)

2CDC131062C0201 - Rev. B
