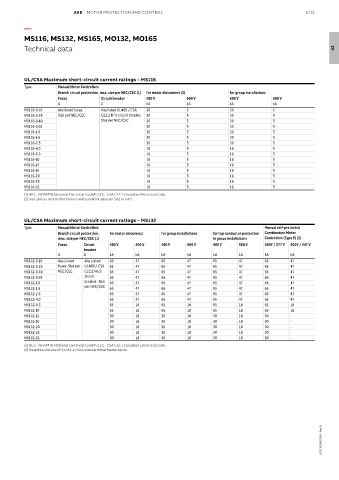

Page 47 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 2/21

—
MS116, MS132, MS165, MO132, MO165

Technical data 02

UL/CSA Maximum short-circuit current ratings – MS116
Type Manual Motor Controllers
Branch circuit protection, max. size per NEC/CEC (1) for motor disconnect (2) for group installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V
A A kA kA kA kA
MS116-0.16 Any listed fuses. Any listed UL489 / CSA 30 5 30 5
MS116-0.25 Size per NEC/CEC C22.2 N° 5 circuit breaker. 30 5 30 5
MS116-0.40 Size per NEC/CEC 30 5 30 5
MS116-0.63 30 5 30 5
MS116-1.0 30 5 30 5
MS116-1.6 30 5 30 5
MS116-2.5 30 5 30 5
MS116-4.0 18 5 18 5
MS116-6.3 18 5 18 5
MS116-10 18 5 18 5
MS116-12 18 5 18 5
MS116-16 18 5 18 5
MS116-20 18 5 18 5
MS116-25 18 5 18 5
MS116-32 18 5 18 5
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.
(2) Suitable as motor disconnect with padlock adaptor SA1 or SA3.

UL/CSA Maximum short-circuit current ratings – MS132
Type Manual Motor Controllers Manual self-protected
Branch circuit protection, for motor disconnect for group installations for tap conductor protection Combination Motor
max. size per NEC/CEC (1) in group installations Controllers (Type E) (2)
Fuses Circuit 480 V 600 V 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V
breaker
A A kA kA kA kA kA kA kA kA
MS132-0.16 Any Listed Any Listed 65 47 65 47 65 47 65 47
MS132-0.25 fuses. Size per UL489 / CSA 65 47 65 47 65 47 65 47
MS132-0.40 NEC/CEC C22.2 No.5 65 47 65 47 65 47 65 47
MS132-0.63 circuit 65 47 65 47 65 47 65 47
MS132-1.0 breaker. Size 65 47 65 47 65 47 65 47
MS132-1.6 per NEC/CEC 65 47 65 47 65 47 65 47
MS132-2.5 65 47 65 47 65 47 65 47
MS132-4.0 65 47 65 47 65 47 65 47
MS132-6.3 65 18 65 18 65 18 65 18
MS132-10 65 18 65 18 65 18 65 18
MS132-12 30 18 30 18 30 18 30 -
MS132-16 30 18 30 18 30 18 30 -
MS132-20 30 18 30 18 30 18 30 -
MS132-25 30 18 30 18 30 18 30 -
MS132-32 30 18 30 18 30 18 30 -
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.
(2) Requires the use of S1-M3-xx line-side terminal feeder block.
