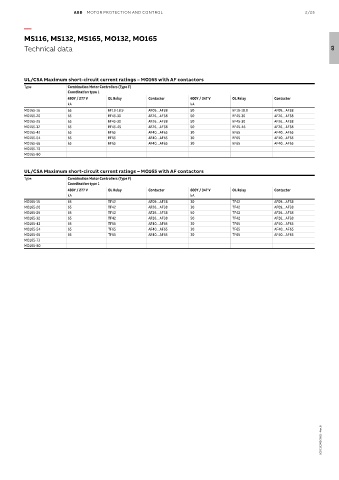

Page 51 - Motor protection and control Manual motor starters, contactors and overload relays
P. 51
ABB MOTOR PROTECTION AND CONTROL 2/25
—
MS116, MS132, MS165, MO132, MO165
Technical data 02
UL/CSA Maximum short-circuit current ratings – MO165 with AF contactors
Type Combination Motor Controllers (Type F)
Coordination type 1
480Y / 277 V OL Relay Contactor 600Y / 347 V OL Relay Contactor
kA kA
MO165-16 65 EF19-18.9 AF09…AF38 50 EF19-18.9 AF09…AF38
MO165-20 65 EF45-30 AF26…AF38 50 EF45-30 AF26…AF38
MO165-25 65 EF45-30 AF26…AF38 50 EF45-30 AF26…AF38
MO165-32 65 EF45-45 AF26…AF38 50 EF45-45 AF26…AF38
MO165-42 65 EF65 AF40…AF65 30 EF65 AF40…AF65
MO165-54 65 EF65 AF40…AF65 30 EF65 AF40…AF65
MO165-65 65 EF65 AF40…AF65 30 EF65 AF40…AF65
MO165-73
MO165-80
UL/CSA Maximum short-circuit current ratings – MO165 with AF contactors
Type Combination Motor Controllers (Type F)
Coordination type 1
480Y / 277 V OL Relay Contactor 600Y / 347 V OL Relay Contactor
kA kA
MO165-16 65 TF42 AF09…AF38 30 TF42 AF09…AF38
MO165-20 65 TF42 AF26…AF38 30 TF42 AF09…AF38
MO165-25 65 TF42 AF26…AF38 50 TF42 AF26…AF38
MO165-32 65 TF42 AF26…AF38 50 TF42 AF26…AF38
MO165-42 65 TF65 AF40…AF65 30 TF65 AF40…AF65
MO165-54 65 TF65 AF40…AF65 30 TF65 AF40…AF65
MO165-65 65 TF65 AF40…AF65 30 TF65 AF40…AF65
MO165-73
MO165-80
2CDC131062C0201 - Rev. B
