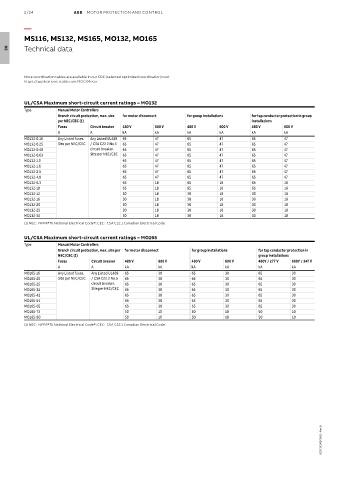

2/24 ABB MOTOR PROTECTION AND CONTROL

—
MS116, MS132, MS165, MO132, MO165

Technical data
02

More coordination tables are available in our SOC (selected optimized coordination) tool:
https://applications.it.abb.com/SOC/Motor

UL/CSA Maximum short-circuit current ratings – MO132
Type Manual Motor Controllers
Branch circuit protection, max. size for motor disconnect for group installations for tap conductor protection in group
per NEC/CEC (1) installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V 480 V 600 V
A A kA kA kA kA kA kA
MO132-0.16 Any Listed fuses. Any Listed UL489 65 47 65 47 65 47
MO132-0.25 Size per NEC/CEC / CSA C22.2 No.5 65 47 65 47 65 47
MO132-0.40 circuit breaker. 65 47 65 47 65 47
MO132-0.63 Size per NEC/CEC 65 47 65 47 65 47
MO132-1.0 65 47 65 47 65 47
MO132-1.6 65 47 65 47 65 47
MO132-2.5 65 47 65 47 65 47
MO132-4.0 65 47 65 47 65 47
MO132-6.3 65 18 65 18 65 18
MO132-10 65 18 65 18 65 18
MO132-12 30 18 30 18 30 18
MO132-16 30 18 30 18 30 18
MO132-20 30 18 30 18 30 18
MO132-25 30 18 30 18 30 18
MO132-32 30 18 30 18 30 18
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

UL/CSA Maximum short-circuit current ratings – MO165
Type Manual Motor Controllers
Branch circuit protection, max. size per for motor disconnect for group installations for tap conductor protection in
NEC/CEC (1) group installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V
A A kA kA kA kA kA kA
MO165-16 Any Listed fuses. Any Listed UL489 65 30 65 30 65 30
MO165-20 Size per NEC/CEC / CSA C22.2 No.5 65 30 65 30 65 30
MO165-25 circuit breaker. 65 30 65 30 65 30
MO165-32 Size per NEC/CEC 65 30 65 30 65 30
MO165-42 65 30 65 30 65 30
MO165-54 65 30 65 30 65 30
MO165-65 65 30 65 30 65 30
MO165-73 50 10 50 10 50 10
MO165-80 50 10 50 10 50 10
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

2CDC131062C0201 - Rev. B
