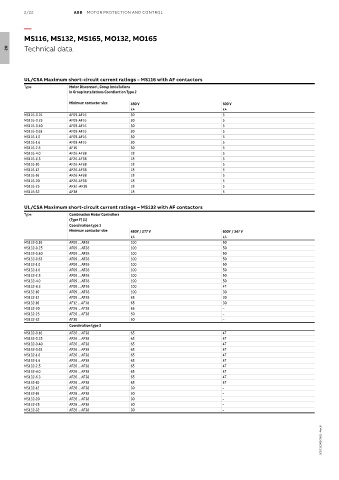

Page 48 - Motor protection and control Manual motor starters, contactors and overload relays

2/22 ABB MOTOR PROTECTION AND CONTROL

—
MS116, MS132, MS165, MO132, MO165

Technical data
02

UL/CSA Maximum short-circuit current ratings – MS116 with AF contactors
Type Motor Disconnect, Group Installations
in Group Installations Coordiantion Type 2
Minimum contactor size 480 V 600 V
kA kA
MS116-0.16 AF09-AF16 30 5
MS116-0.25 AF09-AF16 30 5
MS116-0.40 AF09-AF16 30 5
MS116-0.63 AF09-AF16 30 5
MS116-1.0 AF09-AF16 30 5
MS116-1.6 AF09-AF16 30 5
MS116-2.5 AF16 30 5
MS116-4.0 AF26-AF38 18 5
MS116-6.3 AF26-AF38 18 5
MS116-10 AF26-AF38 18 5
MS116-12 AF26-AF38 18 5
MS116-16 AF26-AF38 18 5
MS116-20 AF26-AF38 18 5
MS116-25 AF32 -AF38 18 5
MS116-32 AF38 18 5

UL/CSA Maximum short-circuit current ratings – MS132 with AF contactors
Type Combination Motor Controllers
(Type F) (1)
Coordination type 1
Minimum contactor size 480Y / 277 V 600Y / 347 V
kA kA
MS132-0.16 AF09 ... AF38 100 50
MS132-0.25 AF09 ... AF38 100 50
MS132-0.40 AF09 ... AF38 100 50
MS132-0.63 AF09 ... AF38 100 50
MS132-1.0 AF09 ... AF38 100 50
MS132-1.6 AF09 ... AF38 100 50
MS132-2.5 AF09 ... AF38 100 50
MS132-4.0 AF09 ... AF38 100 50
MS132-6.3 AF09 ... AF38 100 47
MS132-10 AF09 ... AF38 100 30
MS132-12 AF09 ... AF38 65 30
MS132-16 AF12 ... AF38 65 30
MS132-20 AF26 ... AF38 65 –
MS132-25 AF26 ... AF38 50 –
MS132-32 AF38 50 –
Coordination type 2
MS132-0.16 AF26 ... AF38 65 47
MS132-0.25 AF26 ... AF38 65 47
MS132-0.40 AF26 ... AF38 65 47
MS132-0.63 AF26 ... AF38 65 47
MS132-1.0 AF26 ... AF38 65 47
MS132-1.6 AF26 ... AF38 65 47
MS132-2.5 AF26 ... AF38 65 47
MS132-4.0 AF26 ... AF38 65 47
MS132-6.3 AF26 ... AF38 65 47
MS132-10 AF26 ... AF38 65 47
MS132-12 AF26 ... AF38 30 -
MS132-16 AF26 ... AF38 30 -
MS132-20 AF26 ... AF38 30 -
MS132-25 AF26 ... AF38 30 -
MS132-32 AF26 ... AF38 30 -

2CDC131062C0201 - Rev. B
