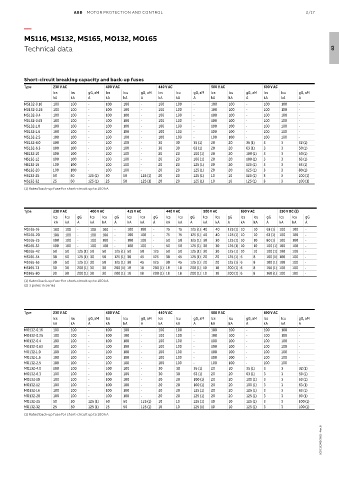

Page 43 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 2/17

—
MS116, MS132, MS165, MO132, MO165

Technical data 02

Short-circuit breaking capacity and back-up fuses
Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC
Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM
kA kA A kA kA A kA kA A kA kA A kA kA A
MS132-0.16 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MS132-0.25 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MS132-0.4 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MS132-0.63 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MS132-1.0 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MS132-1.6 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MS132-2.5 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MS132-4.0 100 100 - 100 100 - 30 30 35 (1) 20 20 35 (1) 3 3 32 (1)
MS132-6.3 100 100 - 100 100 - 30 30 63 (1) 20 20 63 (1) 3 3 50 (1)
MS132-10 100 100 - 100 100 - 20 20 100 (1) 20 20 100 (1) 3 3 50 (1)
MS132-12 100 100 - 100 100 - 20 20 100 (1) 20 20 100 (1) 3 3 63 (1)
MS132-16 100 100 - 100 100 - 20 20 125 (1) 20 20 125 (1) 3 3 63 (1)
MS132-20 100 100 - 100 100 - 20 20 125 (1) 20 20 125 (1) 3 3 80 (1)
MS132-25 50 50 125 (1) 50 50 125 (1) 20 20 125 (1) 10 10 125 (1) 3 3 100 (1)
MS132-32 25 50 125 (1) 25 50 125 (1) 20 20 125 (1) 10 10 125 (1) 3 3 100 (1)
(1) Rated back-up fuse for short-circuit up to 100 kA

Type 230 V AC 400 V AC 415 V AC 440 V AC 500 V AC 690 V AC 250 V DC (2)
Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG
kA kA A kA kA A kA kA A kA kA A kA kA A kA kA A kA kA A
MS165-16 100 100 - 100 100 - 100 100 - 75 75 125 (1) 40 40 125 (1) 10 10 63 (1) 100 100 -
MS165-20 100 100 - 100 100 - 100 100 - 75 75 125 (1) 40 40 125 (1) 10 10 63 (1) 100 100 -
MS165-25 100 100 - 100 100 - 100 100 - 50 50 125 (1) 30 30 125 (1) 10 10 80 (1) 100 100 -
MS165-32 100 100 - 100 100 - 100 100 - 50 50 125 (1) 30 30 125 (1) 10 10 100 (1) 100 100 -
MS165-42 50 50 125 (1) 50 50 125 (1) 50 50 125 50 50 125 (1) 30 30 125 (1) 10 10 100 (1) 100 100 -
MS165-54 30 50 125 (1) 30 50 125 (1) 30 45 125 30 45 125 (1) 20 20 125 (1) 6 8 100 (1) 100 100 -
MS165-65 30 50 125 (1) 30 50 125 (1) 30 45 125 30 45 125 (1) 20 20 125 (1) 6 8 100 (1) 100 100 -
MS165-73 30 30 200 (1) 30 30 200 (1) 18 18 200 (1) 18 18 200 (1) 10 10 200 (1) 6 8 160 (1) 100 100 -
MS165-80 30 30 200 (1) 30 30 200 (1) 18 18 200 (1) 18 18 200 (1) 10 10 200 (1) 6 8 160 (1) 100 100 -
(1) Rated back-up fuse for short-circuit up to 100 kA
(2) 3 poles in series

Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC
Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM
kA kA A kA kA A kA kA A kA kA A kA kA A
MO132-0.16 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-0.25 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-0.4 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-0.63 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-1.0 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-1.6 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-2.5 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-4.0 100 100 - 100 100 - 30 30 35 (1) 20 20 35 (1) 3 3 32 (1)
MO132-6.3 100 100 - 100 100 - 30 30 63 (1) 20 20 63 (1) 3 3 50 (1)
MO132-10 100 100 - 100 100 - 20 20 100 (1) 20 20 100 (1) 3 3 50 (1)
MO132-12 100 100 - 100 100 - 20 20 100 (1) 20 20 100 (1) 3 3 63 (1)
MO132-16 100 100 - 100 100 - 20 20 125 (1) 20 20 125 (1) 3 3 63 (1)
MO132-20 100 100 - 100 100 - 20 20 125 (1) 20 20 125 (1) 3 3 80 (1)
MO132-25 50 50 125 (1) 50 50 125 (1) 10 10 125 (1) 10 10 125 (1) 3 3 100 (1)
MO132-32 25 50 125 (1) 25 50 125 (1) 10 10 125 (1) 10 10 125 (1) 3 3 100 (1)
(1) Rated back-up fuse for short-circuit up to 100 kA

2CDC131062C0201 - Rev. B
