ABB MOTOR PROTECTION AND CONTROL 2/27
02

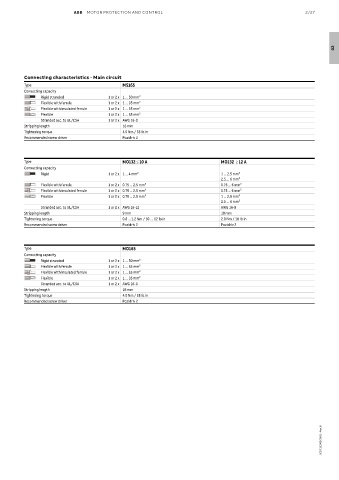

Connecting characteristics - Main circuit
Type MS165
Connecting capacity
Rigid stranded 1 or 2 x 1 ... 50 mm²
Flexible with ferrule 1 or 2 x 1 ... 35 mm²
Flexible with insulated ferrule 1 or 2 x 1 ... 35 mm²
Flexible 1 or 2 x 1 ... 35 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-0
Stripping length 16 mm
Tightening torque 4.0 Nm / 35 Ib.in
Recommended screw driver Pozidriv 2
Type MO132 ≤ 10 A MO132 ≥ 12 A
Connecting capacity
Rigid 1 or 2 x 1 ... 4 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Flexible with ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible with insulated ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible 1 or 2 x 0.75 ... 2.5 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-12 AWG 16-8
Stripping length 9 mm 10 mm
Tightening torque 0.8 ... 1.2 Nm / 10 … 12 Ib.in 2.0 Nm / 18 Ib.in
Recommended screw driver Pozidriv 2 Pozidriv 2
Type MO165
Connecting capacity
Rigid stranded 1 or 2 x 1 ... 50 mm²
Flexible with ferrule 1 or 2 x 1 ... 35 mm²
Flexible with insulated ferrule 1 or 2 x 1 ... 35 mm²
Flexible 1 or 2 x 1 ... 35 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-0
Stripping length 16 mm
Tightening torque 4.0 Nm / 35 Ib.in
Recommended screw driver Pozidriv 2
2CDC131062C0201 - Rev. B
