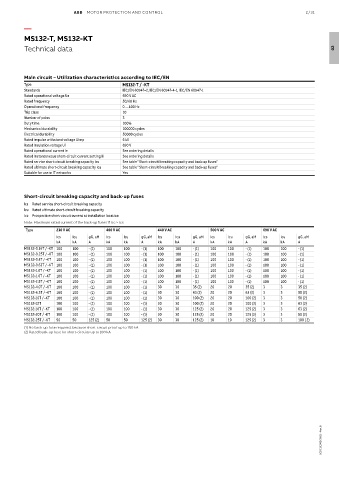

Page 57 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 2/31

—
MS132-T, MS132-KT

Technical data 02

Main circuit – Utilization characteristics according to IEC/EN
Type MS132-T / -KT
Standards IEC/EN 60947–2, IEC/EN 60947-4-1, IEC/EN 60947-1
Rated operational voltage Ue 690 V AC
Rated frequency 50/60 Hz
Operational frequency 0 ... 400 Hz
Trip class 10
Number of poles 3
Duty time 100%
Mechanical durability 100000 cycles
Electrical durability 50000 cycles
Rated impulse withstand voltage Uimp 6 kV
Rated insulation voltage Ui 690 V
Rated operational current Ie See ordering details
Rated instantaneous short-circuit current setting Ii See ordering details
Rated service short-circuit breaking capacity Ics See table "Short-circuit breaking capacity and back-up fuses"
Rated ultimate short-circuit breaking capacity Icu See table "Short-circuit breaking capacity and back-up fuses"
Suitable for use in IT networks Yes

Short-circuit breaking capacity and back-up fuses
lcs Rated service short-circuit breaking capacity
lcu Rated ultimate short-circuit breaking capacity
Icc Prospective short-circuit current at installation location
Note: Maximum rated current of the back-up fuses if Icc > Ics
Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC
Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM
kA kA A kA kA A kA kA A kA kA A kA kA A
MS132-0.16T / -KT 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-0.25T / -KT 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-0.4T / -KT 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-0.63T / -KT 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-1.0T / -KT 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-1.6T / -KT 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-2.5T / -KT 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-4.0T / -KT 100 100 - (1) 100 100 - (1) 30 30 35 (2) 20 20 35 (2) 3 3 35 (2)
MS132-6.3T / -KT 100 100 - (1) 100 100 - (1) 30 30 63 (2) 20 20 63 (2) 3 3 50 (2)
MS132-10T / -KT 100 100 - (1) 100 100 - (1) 30 30 100 (2) 20 20 100 (2) 3 3 50 (2)
MS132-12T 100 100 - (1) 100 100 - (1) 30 30 100 (2) 20 20 100 (2) 3 3 63 (2)
MS132-16T / -KT 100 100 - (1) 100 100 - (1) 30 30 125 (2) 20 20 125 (2) 3 3 63 (2)
MS132-20T / -KT 100 100 - (1) 100 100 - (1) 30 30 125 (2) 20 20 125 (2) 3 3 80 (2)
MS132-25T / -KT 50 50 125 (2) 50 50 125 (2) 30 30 125 (2) 10 10 125 (2) 3 3 100 ( 2)
(1) No back-up fuse required, because short-circuit proof up to 100 kA
(2) Rated back-up fuse for short-circuits up to 100 kA
