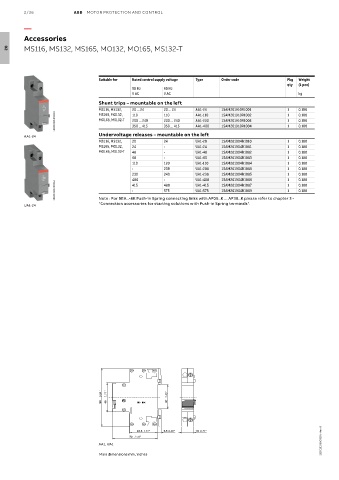

2/36 ABB MOTOR PROTECTION AND CONTROL

—
Accessories

MS116, MS132, MS165, MO132, MO165, MS132-T
02

Suitable for Rated control supply voltage Type Order code Pkg Weight
qty (1 pce)
50 Hz 60 Hz
V AC V AC kg
Shunt trips – mountable on the left
MS116, MS132, 20 ... 24 20 ... 24 AA1-24 1SAM201910R1001 1 1 0.100
1SBC101211F0014 MO165, MS132-T 200 ... 240 200 ... 240 AA1-230 1SAM201910R1003 1 1 0.100
0.100
110
1SAM201910R1002
AA1-110
MS165, MO132,
110
AA1-400
350 ... 415
350 ... 415
0.100
1SAM201910R1004
AA1-24 Undervoltage releases – mountable on the left
MS116, MS132, 20 24 UA1-20 1SAM201904R1010 1 0.100
MS165, MO132, 24 - UA1-24 1SAM201904R1001 1 0.100
MO165, MS132-T 48 - UA1-48 1SAM201904R1002 1 0.100
60 - UA1-60 1SAM201904R1003 1 0.100
110 120 UA1-110 1SAM201904R1004 1 0.100
- 208 UA1-208 1SAM201904R1008 1 0.100
230 240 UA1-230 1SAM201904R1005 1 0.100
400 - UA1-400 1SAM201904R1006 1 0.100
1SBC101212F0014 415 480 UA1-415 1SAM201904R1007 1 1 0.100
575
UA1-575
-
0.100
1SAM201904R1009
Note : For BEA..-4K Push-in Spring connecting links with AF09..K ... AF38..K please refer to chapter 3 -
"Connection accessories for starting solutions with Push-in Spring terminals".
UA1-24

3.54" 1.77" 1.46"
90 45 37

2CDC131050C0201 - Rev. B
43.5 1.71" 5.5 0.22" 18 0.71"
70 2.76"
AA1, UA1
Main dimensions mm, inches
