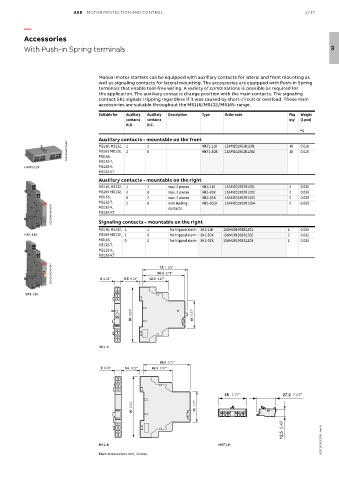

Page 63 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 2/37

—

Accessories
With Push-in Spring terminals 02

Manual motor starters can be equipped with auxiliary contacts for lateral and front mounting as
well as signaling contacts for lateral mounting. The accessories are equipped with Push-in Spring
terminals that enable tool-free wiring. A variety of combinations is possible as required for
the application. The auxiliary contacts change position with the main contacts. The signaling
contact SK1 signals tripping regardless if it was caused by short-circuit or overload. These main
accessories are suitable throughout the MS116/MS132/MS165-range.
Suitable for Auxiliary Auxiliary Description Type Order code Pkg Weight
contacts contacts qty (1 pce)
N.O. N.C.
kg
Auxiliary contacts - mountable on the front
2CDC241027V0017 MS116, MS132, 1 1 0 HKF1-11K 1SAM201901R1201 10 0.016
MS165 MO132, 2
1SAM201901R1202
HKF1-20K
0.016
10
MO165,
MS132-K,
HKF1-11K MS132-T,
MS132-KT
Auxiliary contacts - mountable on the right
MS116, MS132, 1 1 max. 2 pieces HK1-11K 1SAM201902R1201 2 0.035
MS165 MO132, 2 0 max. 2 pieces HK1-20K 1SAM201902R1202 2 0.035
MO165, 0 2 max. 2 pieces HK1-02K 1SAM201902R1203 2 0.035
MS132-T, 2 0 with leading HK1-20LK 1SAM201902R1204 2 0.035
2CDC241028V0017 MS132-KT contacts
MS132-K,
Signaling contacts - mountable on the right
MS116, MS132, 1 1 for tripped alarm SK1-11K 1SAM201903R1201 2 0.035
HK1-11K MS165 MO132, 2 0 for tripped alarm SK1-20K 1SAM201903R1202 2 0.035
MO165, 0 2 for tripped alarm SK1-02K 1SAM201903R1203 2 0.035
MS132-T,
MS132-K,
MS132-KT

2CDC241029V0017 9 0.35" 5.5 0.22" 42.3 1.67"
73.1 2.9"
68.8 2.71"

SK1-11K

90 3.54" 45 1.77"

SK1-K

68.8 2.71"
9 0.35" 5.5 0.22" 42.3 1.67"

45 1.77" 27.2 1.07"
90 3.54" 45 1.77"

12.5 0.49"

HK1-K HKF1-K 2CDC131050C0201 - Rev. B
Main dimensions mm, inches
