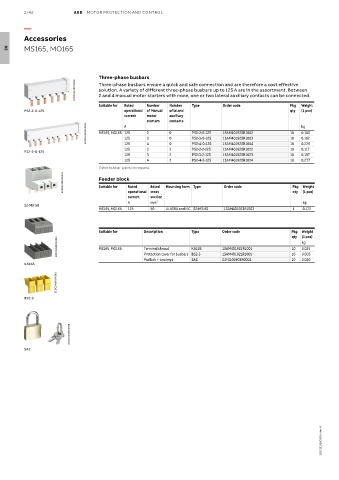

Page 68 - Motor protection and control Manual motor starters, contactors and overload relays

2/42 ABB MOTOR PROTECTION AND CONTROL

—
Accessories

MS165, MO165
02

Three-phase busbars
2CDC241002V0015 Three-phase busbars ensure a quick and safe connection and are therefore a cost effective
solution. A variety of different three-phase busbars up to 125 A are in the assortment. Between
2 and 4 manual motor starters with none, one or two lateral auxiliary contacts can be connected.
Suitable for Rated Number Number Type Order code Pkg Weight
PS2-2-0-125 operational of Manual of lateral qty (1 pce)
current motor auxiliary
starters contacts kg
2CDC241003V0015 MS165, MO165 125 2 3 0 0 PS2-2-0-125 1SAM401920R1002 10 0.100
A
1SAM401920R1003
10
125
PS2-3-0-125
0.162
125
PS2-2-2-125
125 4 2 0 2 PS2-4-0-125 1SAM401920R1004 10 0.226
0.117
1SAM401920R1022
10
PS2-3-0-125
125 3 2 PS2-3-2-125 1SAM401920R1023 10 0.197
125 4 2 PS2-4-2-125 1SAM401920R1024 10 0.277
Other busbar types on request.
2CDC241012V0019 Feeder block Rated Rated Mounting form Type Order code Pkg Weight
Suitable for
operational cross
current section qty (1 pce)
A mm² kg
S2-M3-50
MS165, MO165 125 50 UL508A and IEC S2-M3-50 1SAM401923R1003 1 0.172
Suitable for Description Type Order code Pkg Weight
qty
(1 pce)
2CDC241010V0014 MS165, MO165 Terminal shroud KA165 1SAM401922R1001 10 kg
0.025
Protection cover for busbars BS2-3
10
Padlock + two keys SA2 1SAM401921R1001 10 0.005
GJF1101903R0002
0.020
KA165
2CDC241001V0015
BS2-3

2CDC241023F0013

SA2

2CDC131050C0201 - Rev. B
