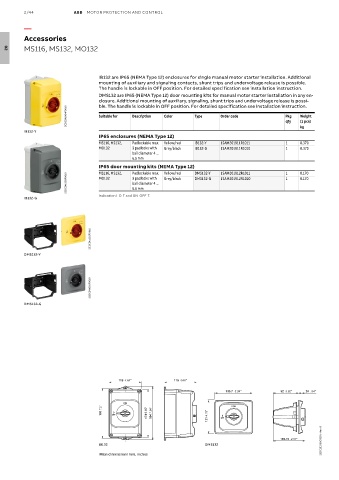

2/44 ABB MOTOR PROTECTION AND CONTROL

—
Accessories

MS116, MS132, MO132
02

IB132 are IP65 (NEMA Type 12) enclosures for single manual motor starter installation. Additional
mounting of auxiliary and signaling contacts, shunt trips and undervoltage release is possible.
The handle is lockable in OFF position. For detailed specification see installation instruction.
DMS132 are IP65 (NEMA Type 12) door mounting kits for manual motor starter installation in any en-
closure. Additional mounting of auxiliary, signaling, shunt trips and undervoltage release is possi-
ble. The handle is lockable in OFF position. For detailed specification see installation instruction.
2CDC241004F0010 Suitable for Description Color Type Order code Pkg Weight
(1 pce)
qty
IB132-Y kg
IP65 enclosures (NEMA Type 12)
MS116, MS132, Padlockable max. Yellow/red IB132-Y 1SAM201911R1011 1 0.370
MO132 3 padlocks with Grey/black IB132-G 1SAM201911R1010 1 0.370
bail diameter 4 ...
6.5 mm
IP65 door mounting kits (NEMA Type 12) DMS132-Y 1SAM201912R1011 1 0.170
MS116, MS132,
Padlockable max. Yellow/red
2CDC241003F0010 MO132 3 padlocks with Grey/black DMS132-G 1SAM201912R1010 1 0.170
bail diameter 4 ...
6.5 mm
Indication I-O-T and ON-OFF-T.
IB132-G

2CDC241002F0010

DMS132-Y

2CDC241001F0010

DMS132-G

118 4.65" 119 4.69"
135.7 5.34" 92 3.62" 24 .94"

I ON I ON
183 7.2" OFF 0 174 6.85" 194 7.64" 4.76"
121 OFF 0
2CDC131050C0201 - Rev. B

116.15 4.57"
IB132 DMS132
Main dimensions mm, inches
