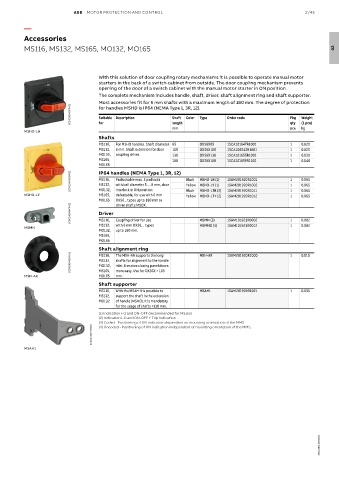

Page 71 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 2/45

—
Accessories

MS116, MS132, MS165, MO132, MO165 02

With this solution of door coupling rotary mechanisms it is possible to operate manual motor
starters in the back of a switch cabinet from outside. The door coupling mechanism prevents
opening of the door of a switch cabinet with the manual motor starter in ON position.
The complete mechanism includes handle, shaft, driver, shaft alignment ring and shaft supporter.
Most accessories fit for 6 mm shafts with a maximum length of 180 mm. The degree of protection
2CDC241003F0011 Suitable Description Shaft Color Type Order code Pkg Weight
for handles MSHD is IP64 (NEMA Type 1, 3R, 12).
for
(1 pce)
qty
length
MSHD-LB mm pce kg
Shafts
MS116, For MSHD handles. Shaft diameter 85 OXS6X85 1SCA101647R1001 1 0.020
MS132, 6 mm. Shaft extension for door 105 OXS6X105 1SCA108043R1001 1 0.020
MO132, coupling driver. 130 OXS6X130 1SCA101655R1001 1 0.030
MS165, 180 OXS6X180 1SCA101659R1001 1 0.040
MO165
IP64 handles (NEMA Type 1, 3R, 12)
2CDC241002S0011 MS116, Padlockable max. 3 padlocks Black MSHD-LB (1) 1SAM201920R1001 1 1 0.065
Yellow MSHD-LY (1)
with bail diameter 5 … 8 mm, door
MS132,
1SAM201920R1002
0.065
defeatable, for use with 6 mm
MSHD-LY MO132, interlock in ON position Black MSHD-LTB (2) 1SAM201920R1011 1 1 0.065
MS165,
0.065
1SAM201920R1012
Yellow MSHD-LTY (2)
MO165 OXS6…types up to 180 mm or
2CDC241004F0011 Driver Coupling driver for use MSMN (3) 1SAM101923R0002 1 0.002
driver shafts MSOX.
MS116,
MSMN MS132, with 6 mm OXS6… types MSMNO (4) 1SAM101923R0012 1 0.002
MO132, up to 180 mm.
MS165,
MO165
Shaft alignment ring MSH-AR 1SAM201920R1000 1 0.010
2CDC241001F0012 MS132, shafts for alignment to the handle
MS116,
The MSH-AR supports the long
inlet. It makes closing panel doors
MO132,
mm.
MO165
MSH-AR MS165, more easy. Use for OXS6X > 105
Shaft supporter
MS116, With the MSAH it is possible to MSAH1 1SAM201909R1021 1 0.035
MS132, support the shaft in the extension
MO132 of handle (MSHD). It is mandatory
for the usage of shafts >130 mm.
(1) Indication I-O and ON-OFF (recommended for MS116)
(2) Indication I-O and ON-OFF + Trip indication
(3) Coded - Positioning of ON indication dependent on mounting orientation of the MMS
2CDC241017V0013
(4) Uncoded - Positioning of ON indication independent of mounting orientation of the MMS.
MSAH1
