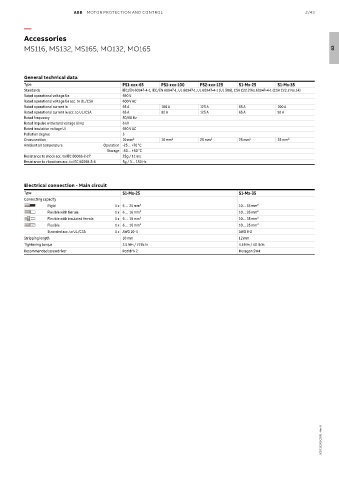

Page 69 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 2/43

—
Accessories

MS116, MS132, MS165, MO132, MO165 02

General technical data
Type PS1-xxx-65 PS1-xxx-100 PS2-xxx-125 S1-Mx-25 S1-Mx-35
Standards IEC/EN 60947-4-1, IEC/EN 60947-1, UL 60947-1, UL 60947-4-1 (UL 508), CSA C22.2 No.60947-4-1 (CSA C22.2 No.14)
Rated operational voltage Ue 690 V
Rated operational voltage Ue acc. to UL/CSA 600 V AC
Rated operational current Ie 65 A 100 A 125 A 65 A 100 A
Rated operational current Ie acc. to UL/CSA 65 A 92 A 125 A 65 A 92 A
Rated frequency 50/60 Hz
Rated impulse withstand voltage Uimp 6 kV
Rated insulation voltage Ui 690 V AC
Pollution degree 3
Cross-section 10 mm² 16 mm² 25 mm² 25 mm² 35 mm²
Ambient air temperature Operation -25 ... +70 °C
Storage -50 ... +80 °C
Resistance to shock acc. to IEC 60068-2-27 25g / 11 ms
Resistance to vibrations acc. to IEC 60068-2-6 5g / 3 ... 150 Hz

Electrical connection - Main circuit
Type S1-Mx-25 S1-Mx-35
Connecting capacity
Rigid 1 x 6 ... 25 mm² 10 ... 35 mm²
Flexible with ferrule 1 x 6 ... 16 mm² 10 ... 35 mm²
Flexible with insulated ferrule 1 x 6 ... 16 mm² 10 ... 35 mm²
Flexible 1 x 6 ... 16 mm² 10 ... 35 mm²
Stranded acc. to UL/CSA 1 x AWG 10-4 AWG 8-2
Stripping length 10 mm 12 mm
Tightening torque 2.5 Nm / 22 Ib.in 4.5 Nm / 40 Ib.in
Recommended screwdriver Pozidriv 2 Hexagon SW4
