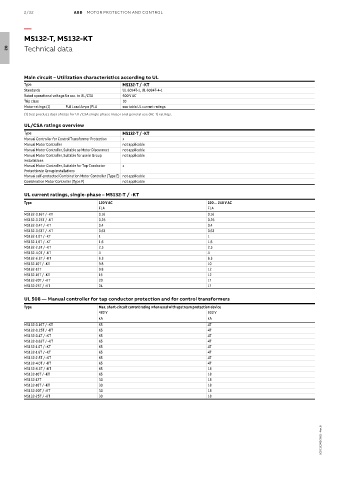

Page 58 - Motor protection and control Manual motor starters, contactors and overload relays

2/32 ABB MOTOR PROTECTION AND CONTROL

—
MS132-T, MS132-KT

Technical data
02

Main circuit – Utilization characteristics according to UL
Type MS132-T / -KT
Standards UL 60947-1, UL 60947-4-1
Rated operational voltage Ue acc. to UL/CSA 600 V AC
Trip class 10
Motor ratings (1) Full Load Amps (FLA see table UL current ratings
(1) See product data sheets for UL/CSA single phase motor and general use (AC-1) ratings.
UL/CSA ratings overview
Type MS132-T / -KT
Manual Controller for Control Transformer Protection x
Manual Motor Controller not applicable
Manual Motor Controller, Suitable as Motor Disconnect not applicable
Manual Motor Controller, Suitable for use in Group not applicable
Installations
Manual Motor Controller, Suitable for Tap Conductor x
Protection in Group Installations
Manual self-protected Combination Motor Controller (Type E) not applicable
Combination Motor Controller (Type F) not applicable

UL current ratings, single-phase – MS132-T / -KT
Type 120 V AC 220 ... 240 V AC
FLA FLA
MS132-0.16T / -KT 0.16 0.16
MS132-0.25T / -KT 0.25 0.25
MS132-0.4T / -KT 0.4 0.4
MS132-0.63T / -KT 0.63 0.63
MS132-1.0T / -KT 1 1
MS132-1.6T / -KT 1.6 1.6
MS132-2.5T / -KT 2.5 2.5
MS132-4.0T / -KT 4 4
MS132-6.3T / -KT 6.3 6.3
MS132-10T / -KT 9.8 10
MS132-12T 9.8 12
MS132-16T / -KT 16 12
MS132-20T / -KT 20 17
MS132-25T / -KT 24 17

UL 508 — Manual controller for tap conductor protection and for control transformers
Type Max. short-circuit current rating when used with upstream protection device
480 V 600 V
kA kA
MS132-0.16T / -KT 65 47
MS132-0.25T / -KT 65 47
MS132-0.4T / -KT 65 47
MS132-0.63T / -KT 65 47
MS132-1.0T / -KT 65 47
MS132-1.6T / -KT 65 47
MS132-2.5T / -KT 65 47
MS132-4.0T / -KT 65 47
MS132-6.3T / -KT 65 18
MS132-10T / -KT 65 18
MS132-12T 30 18
MS132-16T / -KT 30 18
MS132-20T / -KT 30 18
MS132-25T / -KT 30 18

2CDC131062C0201 - Rev. B
