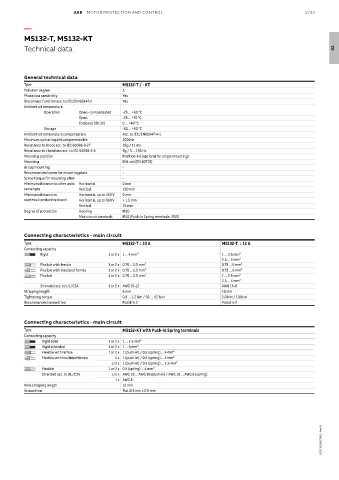

Page 59 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 2/33

—
MS132-T, MS132-KT

Technical data 02

General technical data
Type MS132-T / - KT
Pollution degree 3
Phase loss sensitivity Yes
Disconnect function acc. to IEC/EN 60947-2 Yes
Ambient air temperature
Operation Open - compensated -25 ... +60 °C
Open -25 ... +70 °C
Enclosed (IB132) 0 ... +40 °C
Storage -50 ... +80 °C
Ambient air temperature compensation Acc. to IEC/EN60947-4-1
Maximum operating altitude permissible 2000 m
Resistance to shock acc. to IEC 60068-2-27 25g / 11 ms
Resistance to vibrations acc. to IEC 60068-2-6 5g / 3 ... 150 Hz
Mounting position Position 1-6 (optional for single mounting)
Mounting DIN-rail (EN 60715)
Group mounting -
Recommended screw for mounting plate -
Screw torque for mounting plate -
Minimum distance to other units Horizontal 0 mm
same type Vertical 150 mm
Minimum distance to Horizontal, up to 400 V 0 mm
electrical conductive board Horizontal, up to 690 V > 1.5 mm
Vertical 75 mm
Degree of protection Housing IP20
Main circuit terminals IP10 (Push-in Spring terminals: IP20)

Connecting characteristics - main circuit
Type MS132-T ≤ 10 A MS132-T ≥ 12 A
Connecting capacity
Rigid 1 or 2 x 1 ... 4 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Flexible with ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible with insulated ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible 1 or 2 x 0.75 ... 2.5 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-12 AWG 16-8
Stripping length 9 mm 10 mm
Tightening torque 0.8 ... 1.2 Nm / 10 … 12 Ib.in 2.0 Nm / 18 Ib.in
Recommended screwdriver Pozidriv 2 Pozidriv 2

Connecting characteristics - main circuit
Type MS132-KT with Push-in Spring terminals
Connecting capacity
Rigid solid 1 or 2 x 1 ... 2.5 mm²
Rigid stranded 1 or 2 x 1 ... 6 mm²
Flexible with ferrule 1 or 2 x 1 (push-in) / 0.5 (spring) ... 4 mm²
Flexible with insulated ferrule 1 x 1 (push-in) / 0.5 (spring) ... 4 mm²
1/2 x 1 (push-in) / 0.5 (spring) ... 2.5 mm²
Flexible 1 or 2 x 0.5 (spring) ... 4 mm²
Stranded acc. to UL/CSA 1/2 x AWG 18 ... AWG 10 (push-in) / AWG 18 ... AWG 8 (spring)
1 x AWG 8
Wire stripping length 12 mm
Screwdriver Flat Ø 3 mm x 0.5 mm

2CDC131062C0201 - Rev. B
