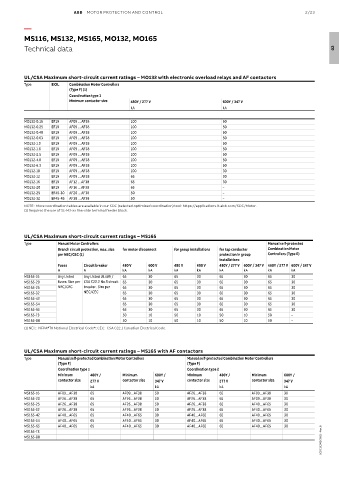

Page 49 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 2/23

—
MS116, MS132, MS165, MO132, MO165

Technical data 02

UL/CSA Maximum short-circuit current ratings – MO132 with electronic overload relays and AF contactors
Type EOL Combination Motor Controllers
(Type F) (1)
Coordination type 1
Minimum contactor size 480Y / 277 V 600Y / 347 V
kA kA

MO132-0.16 EF19 AF09 ... AF38 100 50
MO132-0.25 EF19 AF09 ... AF38 100 50
MO132-0.40 EF19 AF09 ... AF38 100 50
MO132-0.63 EF19 AF09 ... AF38 100 50
MO132-1.0 EF19 AF09 ... AF38 100 50
MO132-1.6 EF19 AF09 ... AF38 100 50
MO132-2.5 EF19 AF09 ... AF38 100 50
MO132-4.0 EF19 AF09 ... AF38 100 50
MO132-6.3 EF19 AF09 ... AF38 100 50
MO132-10 EF19 AF09 ... AF38 100 30
MO132-12 EF19 AF09 ... AF38 65 30
MO132-16 EF19 AF12 ... AF38 65 30
MO132-20 EF19 AF16 ... AF38 65 –
MO132-25 EF45-30 AF26 ... AF38 50 –
MO132-32 EF45-45 AF38 ... AF38 50 –
NOTE : More coordination tables are available in our SOC (selected optimized coordination) tool: https://applications.it.abb.com/SOC/Motor.
(1) Requires the use of S1-M3-xx line-side terminal feeder block.

UL/CSA Maximum short-circuit current ratings – MS165
Type Manual Motor Controllers Manual self-protected
Branch circuit protection, max. size for motor disconnect for group installations for tap conductor Combination Motor
per NEC/CEC (1) protection in group Controllers (Type E)
installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V 480Y / 277 V 600Y / 347 V
A A kA kA kA kA kA kA kA kA
MS165-16 Any Listed Any Listed UL489 / 65 30 65 30 65 30 65 30
MS165-20 fuses. Size per CSA C22.2 No.5 circuit 65 30 65 30 65 30 65 30
MS165-25 NEC/CEC breaker. Size per 65 30 65 30 65 30 65 30
MS165-32 NEC/CEC 65 30 65 30 65 30 65 30
MS165-42 65 30 65 30 65 30 65 30
MS165-54 65 30 65 30 65 30 65 30
MS165-65 65 30 65 30 65 30 65 30
MS165-73 50 10 50 10 50 10 50 –
MS165-80 50 10 50 10 50 10 50 –
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

UL/CSA Maximum short-circuit current ratings – MS165 with AF contactors
Type Manual self-protected Combination Motor Controllers Manual self-protected Combination Motor Controllers
(Type F) (Type F)
Coordination type 1 Coordination type 2
Minimum 480Y / Minimum 600Y / Minimum 480Y / Minimum 600Y /
contactor size 277 V contactor size 347 V contactor size 277 V contactor size 347 V
kA kA kA kA
MS165-16 AF09…AF38 65 AF09…AF38 50 AF26…AF38 65 AF09…AF38 30
MS165-20 AF26…AF38 65 AF26…AF38 50 AF26…AF38 65 AF09…AF38 30
MS165-25 AF26…AF38 65 AF26…AF38 50 AF26…AF38 65 AF40…AF65 30
MS165-32 AF26…AF38 65 AF26…AF38 50 AF26…AF38 65 AF40…AF65 30
MS165-42 AF40…AF65 65 AF40…AF65 30 AF40…AF65 65 AF40…AF65 30
MS165-54 AF40…AF65 65 AF40…AF65 30 AF40…AF65 65 AF40…AF65 30
MS165-65 AF40…AF65 65 AF40…AF65 30 AF40…AF65 65 AF40…AF65 30
2CDC131062C0201 - Rev. B
MS165-73
MS165-80
